A/C compressor will not turn on

VGABOR

MEMBER
2011 FORD MONDEO
1.6L
4 CYL
TURBO
2WD
MANUAL
94,448 MILES

Dear 2CarPros, can you help me? I need wiring diagram for 2011 Ford Mondeo 1.6 tdci econetic.

My problem the A/C compressor wont turn on. I'm now buy this car. Check the gas level, is not enough. Filled up.
Compressor don't start.
Check the button - okay.
Check the relay - okay.
Check the fuse - wrong (replace) not working the compressor.
Check the compressor two wire ( coil ) to earth, okay no problem.

i'm try check compressor 12 volts on connector. But failed. I don't know no 12 volts to compressor or problem via multi-meter.

Any idea? Can you send wiring diagram for this car?

Thanks

1 Reply

KEN L

MASTER CERTIFIED MECHANIC
47,665 POSTS

Hello,

It does sound like you have a connection issue. here is a guide to help find the problem along with the air conditioner wiring diagrams so you can see how the system works:

https://www.2carpros.com/articles/how-to-check-wiring

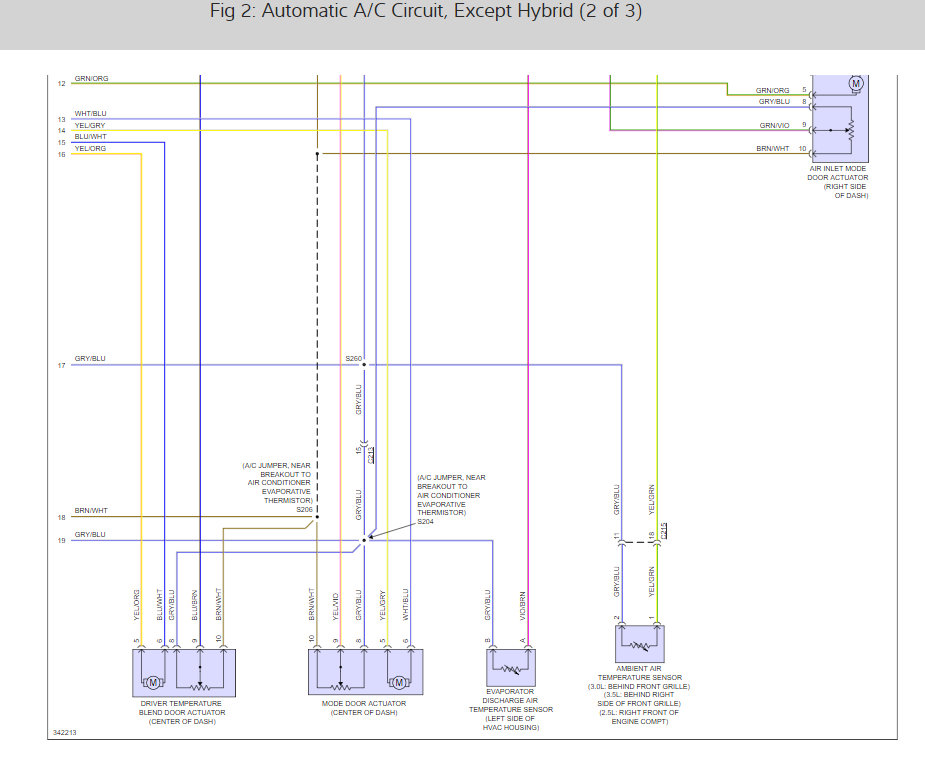

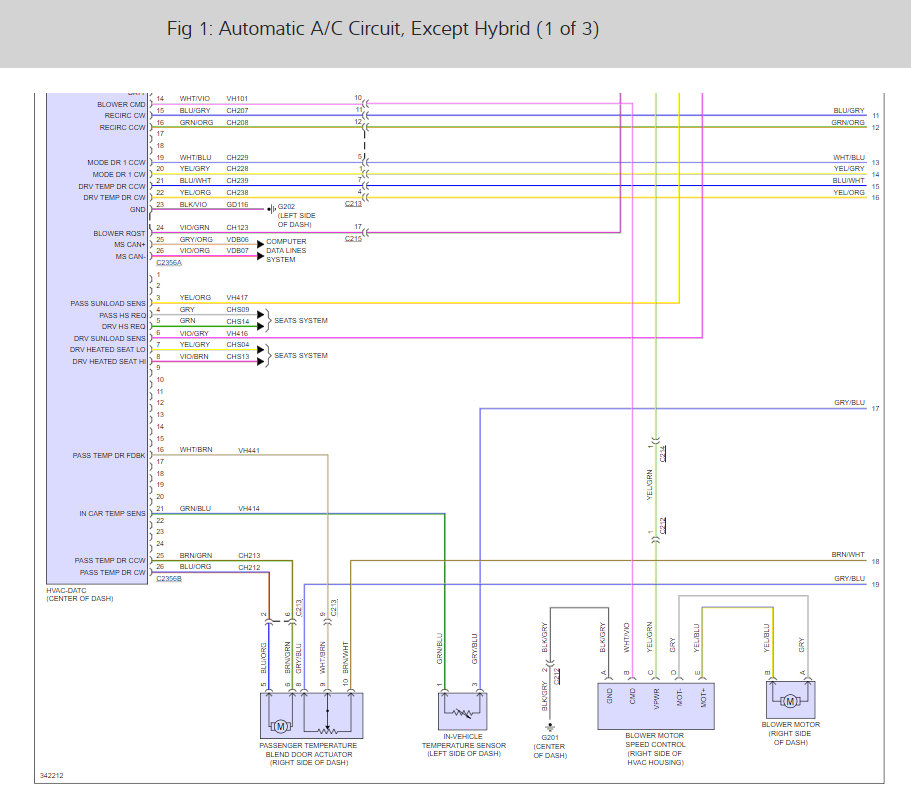

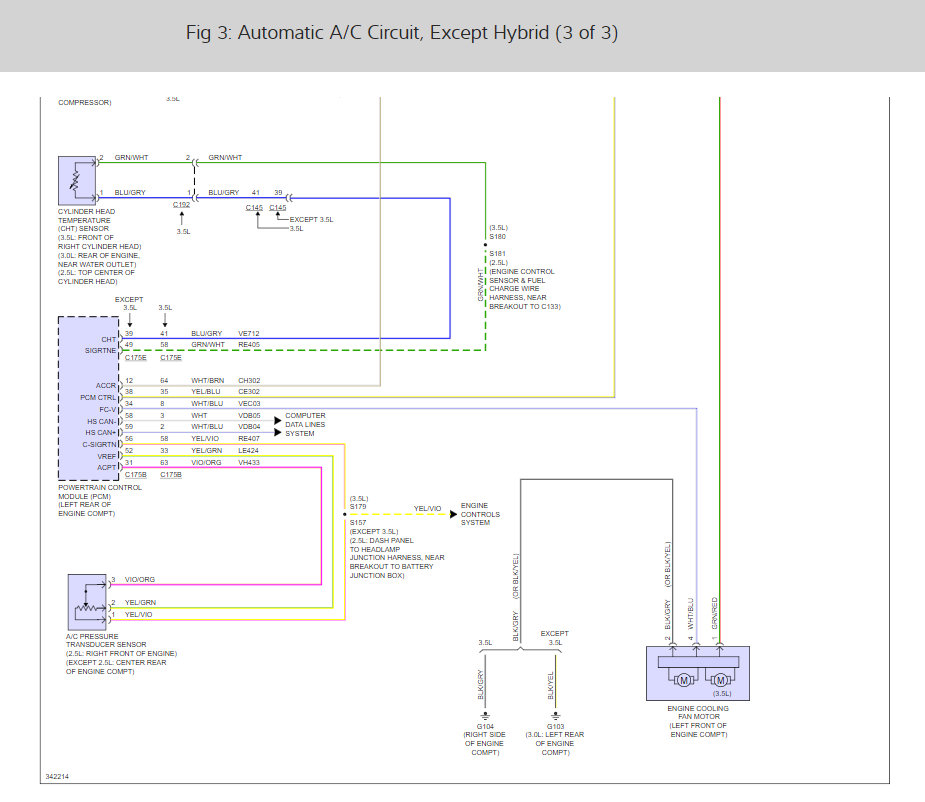

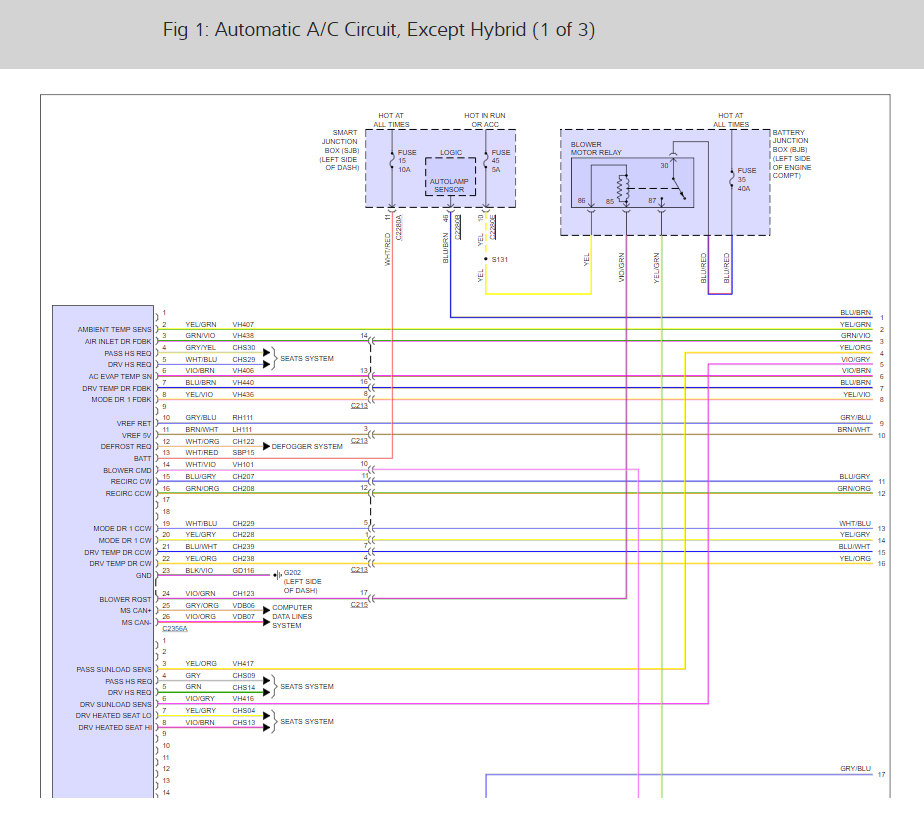

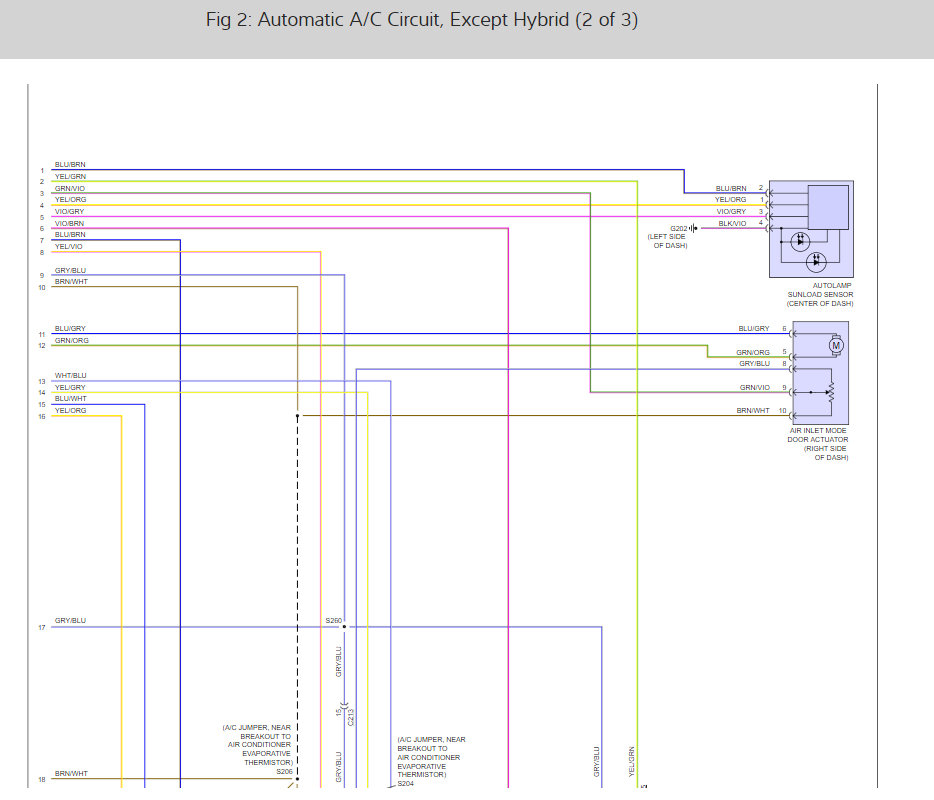

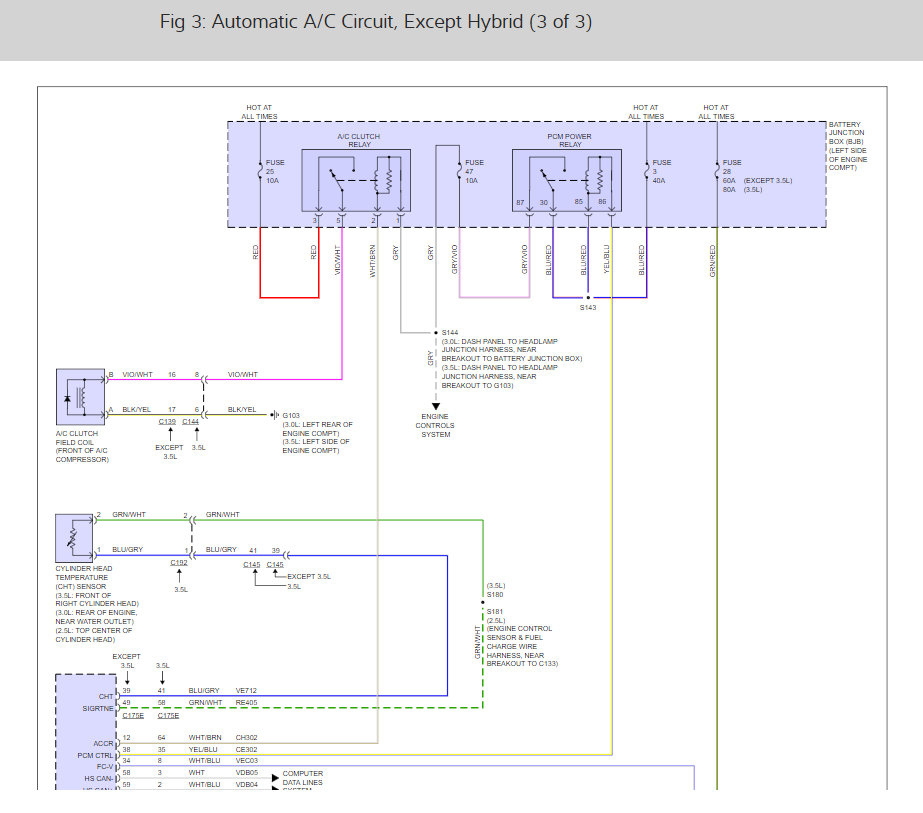

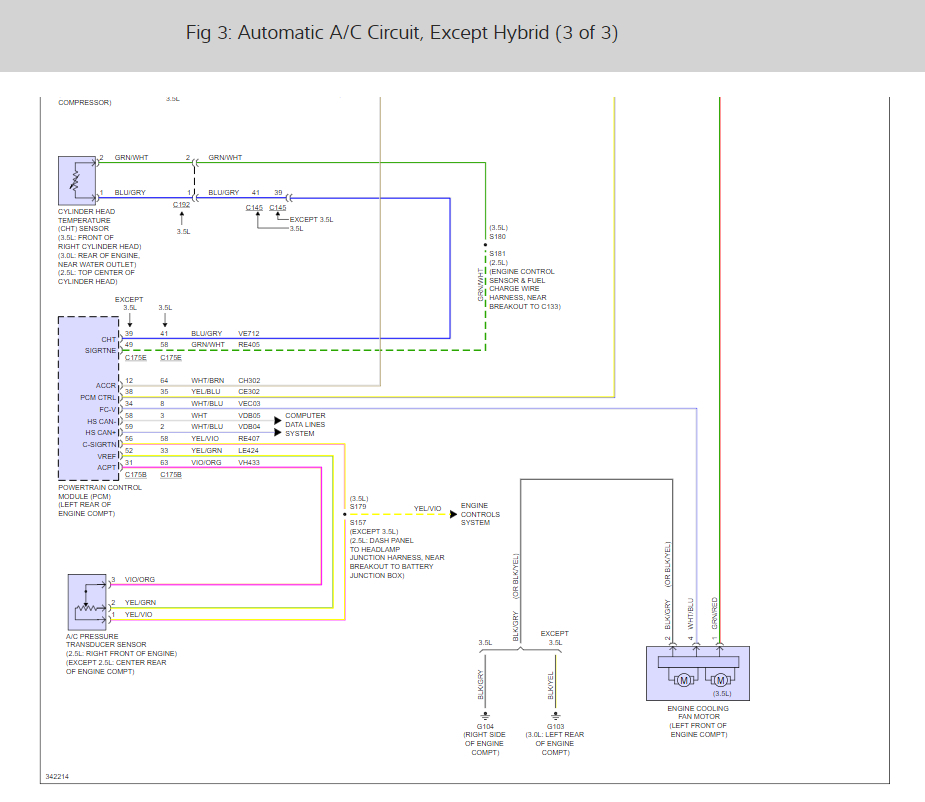

Check out the diagrams (below). Please let us know what you find. We are interested to see what it is.

Images (Click to make bigger)
