Fuse panel AC fuses and relays

Tiny
CARLOVER1112
  • MEMBER
  • 2008 CHEVROLET SUBURBAN
  • AUTOMATIC
I need to know where the AC fuses and relays are. I need to test them.
Sunday, January 6th, 2019 AT 10:52 AM

1 Reply

Tiny
KASEKENNY
  • MECHANIC
  • 18,907 POSTS
Here are some guides that will give step by step instructions which will help with testing the fuses and relays:

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

https://www.2carpros.com/articles/how-to-check-a-car-fuse

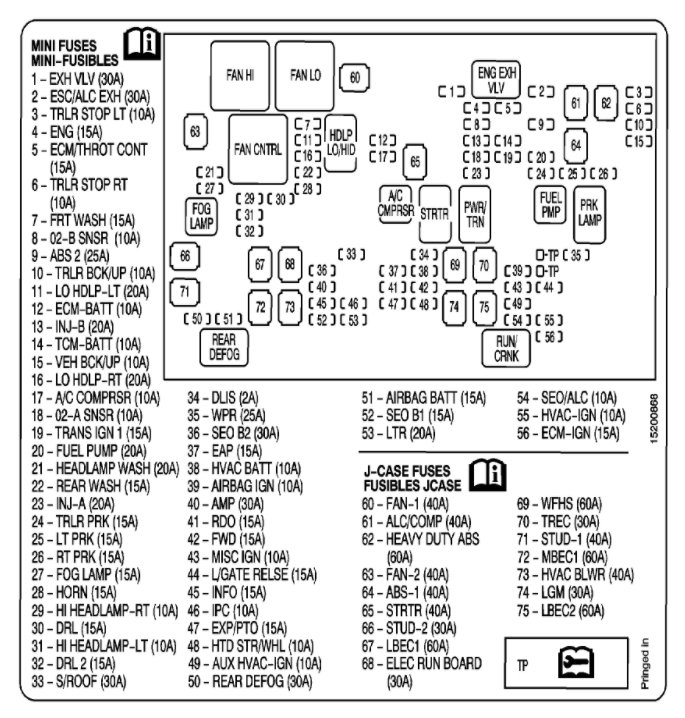

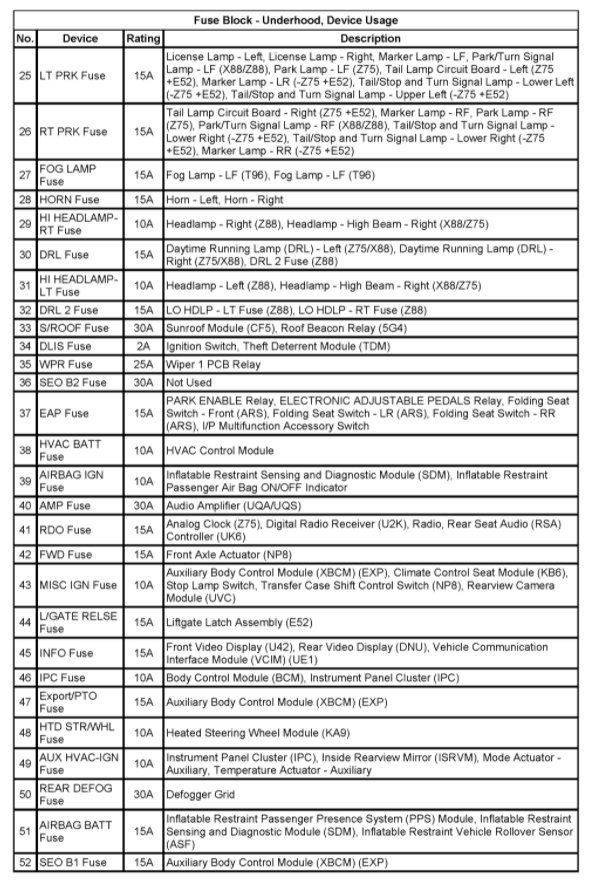

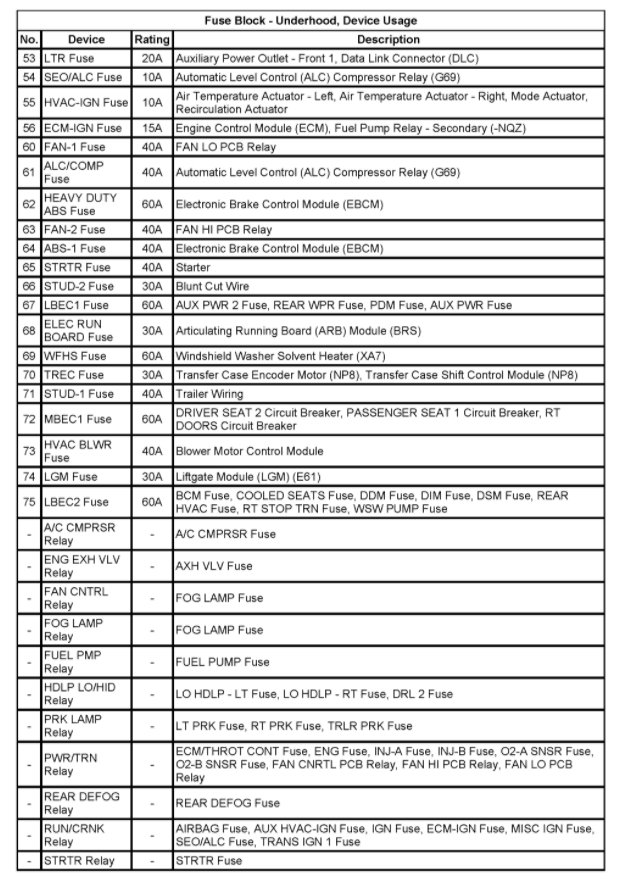

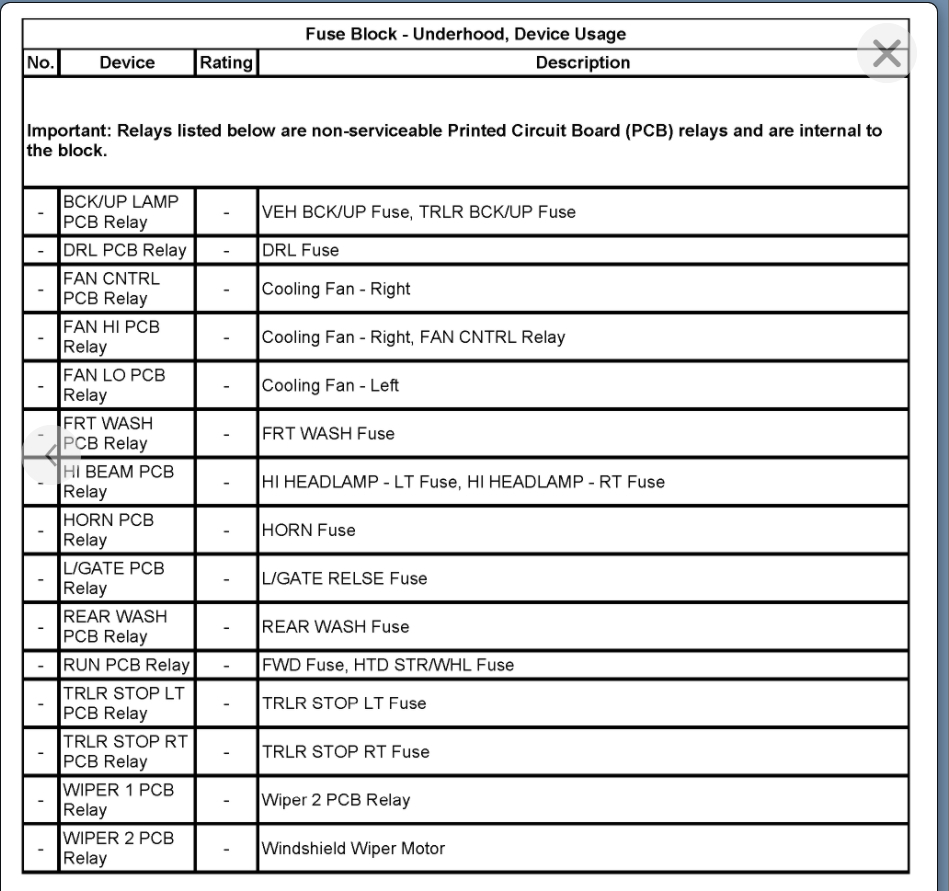

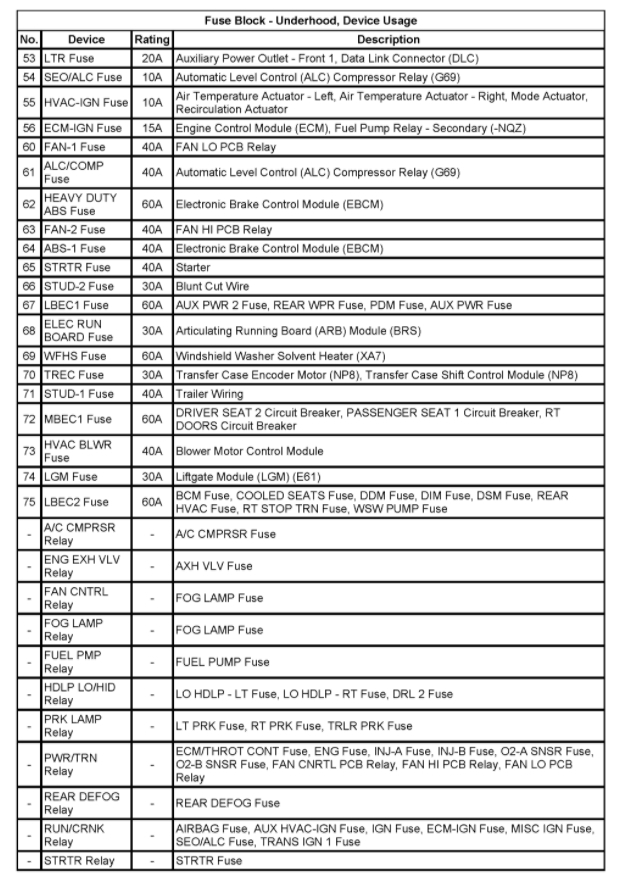

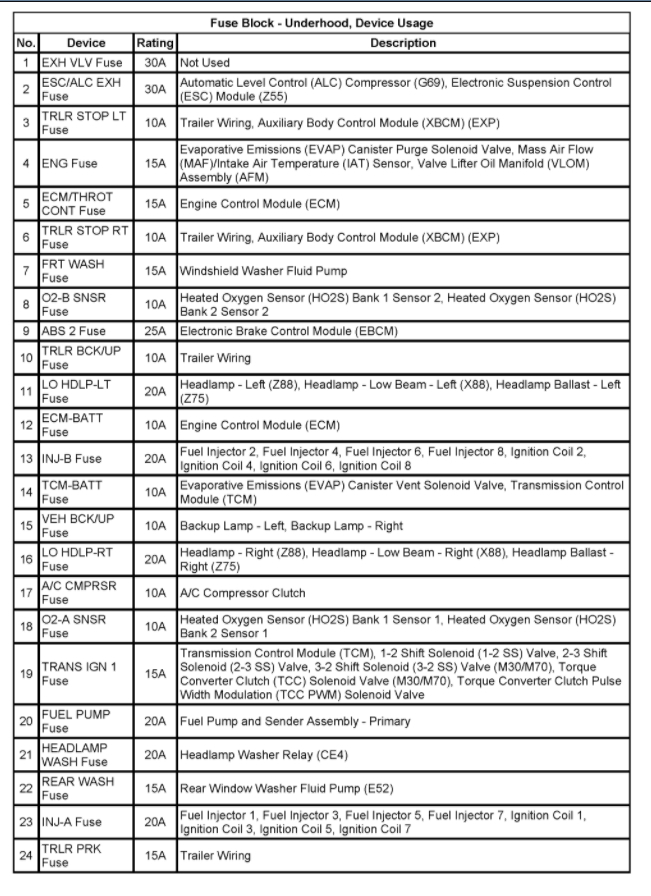

Below are fuse diagrams that will help with the testing that you need. Please let us know what questions you have. Thanks
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
