I just purchased a new solenoid and removed the.

Tiny
ANONYMOUS
  • MEMBER
  • 1976 TOYOTA CELICA
  • 170 MILES
I just purchased a new solenoid and removed the starter, and I can't figure out where or how it goes on the starter. Thanks

Will
Saturday, October 20th, 2012 AT 8:17 PM

5 Replies

Tiny
CARADIODOC
  • MECHANIC
  • 33,874 POSTS
There's two different models of starter. Can you post a photo of your starter and the new solenoid? If not, I'll try to find some.

It sounds like you have a solenoid that bolts onto the front starter housing with two or three screws. The newer Nippendenso starters have the solenoid built into the assembly and you typically replace the contacts, and the plunger assembly if it is badly pitted.
Was this
answer
helpful?
Yes
No
Saturday, October 20th, 2012 AT 8:28 PM
Tiny
WILLCABALLERO
  • MEMBER
  • 2 POSTS
Thanks for your quick response

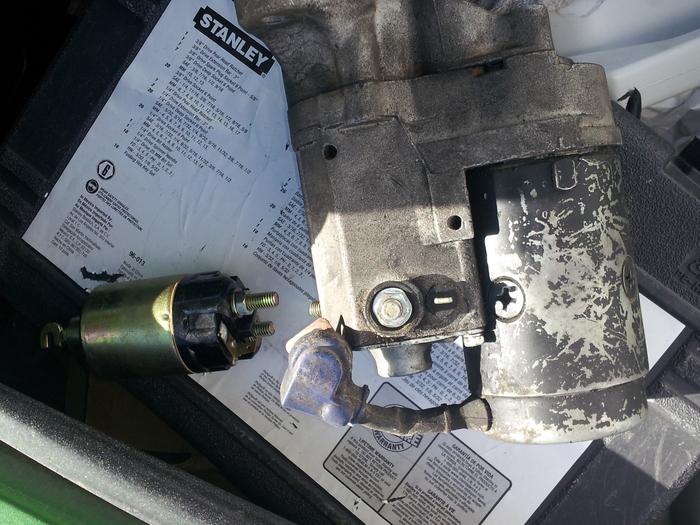

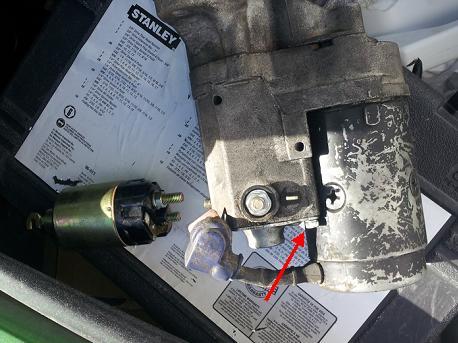

Here's a pic. Of both.
Was this
answer
helpful?
Yes
No
Saturday, October 20th, 2012 AT 8:44 PM
Tiny
CARADIODOC
  • MECHANIC
  • 33,874 POSTS
Yup. You have the solenoid for the wrong starter. I'm surprised to see they were using the same design way back in '76 but if it's the same inside as the newer versions, this has a real easy fix. I don't have this starter on my web site yet but I will in a few weeks. If you need instructions on the repair procedure, I'll work on it tonight.

Basically you remove the three bolts on the solenoid cover, (red arrow), then pull out the contact disc with the plunger and spring. You'll see the two copper contacts inside that are burned away. The newer version of this starter is used on Chrysler products since the late '80s and I've replaced a lot of these contacts. We even have a farm supply store that stocks the repair kits for them now. Cost is about 12 bucks. I buy just the contacts from a local rebuilder for three dollars each. I rarely have to replace the contact disc / plunger.

On the newer version there are four different contacts available. All starters on Chryslers and Toyotas use the same "battery" contact. There's three versions of the other contact, and no way to know which one you have until you take it apart and look. The kits come with all four but you only use the two you need.
Was this
answer
helpful?
Yes
No
Saturday, October 20th, 2012 AT 9:27 PM
Tiny
WILLCABALLERO
  • MEMBER
  • 2 POSTS
That explains everything! I've had that cover off already. Do you have a link to your store and able to give me the step-by-step to replace them? Thanks!

Will
Was this
answer
helpful?
Yes
No
Saturday, October 20th, 2012 AT 9:33 PM
Tiny
CARADIODOC
  • MECHANIC
  • 33,874 POSTS
It's not a store. It's an electrical resource for students, instructors, and do-it-yourselfers:

http://randysrepairshop.net/index.html

I'll be adding more stuff as I find units to disassemble and photograph. Will be adding lots of pages on engine sensor circuits and diagnosis too.
