Wiring diagram needed?

Tiny
RUSSELLJESSE2019
  • MEMBER
  • 1999 FORD RANGER
  • 2.5L
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 350,000 MILES
1999 ford ranger Mazda courier 2.5l, wiring schematics for dummies, lol.
Saturday, August 5th, 2023 AT 2:35 AM

4 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,643 POSTS
For what system or systems do you need the wiring diagrams for?
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Saturday, August 5th, 2023 AT 11:22 AM
Tiny
RUSSELLJESSE2019
  • MEMBER
  • 2 POSTS
For the engine and under the driver’s side seat right before the gas tank there’s two plugs and they were both cut off. I bought a truck that some tweakers got a hold of and thought they could make it better it ran before then they cut all the wires and it wouldn’t start, so I bought it for $200. Nice little light truck for me to just get in and go out instead of motorcycle.
Was this
answer
helpful?
Yes
No
+1
Saturday, August 5th, 2023 AT 12:21 PM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,643 POSTS

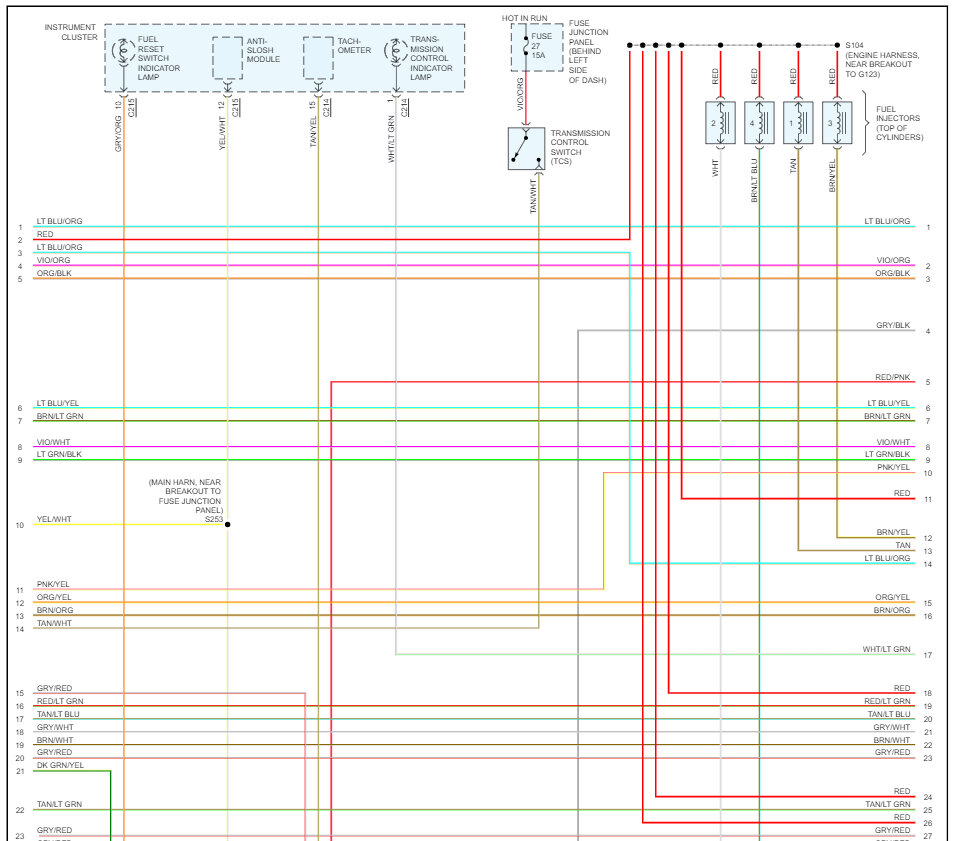

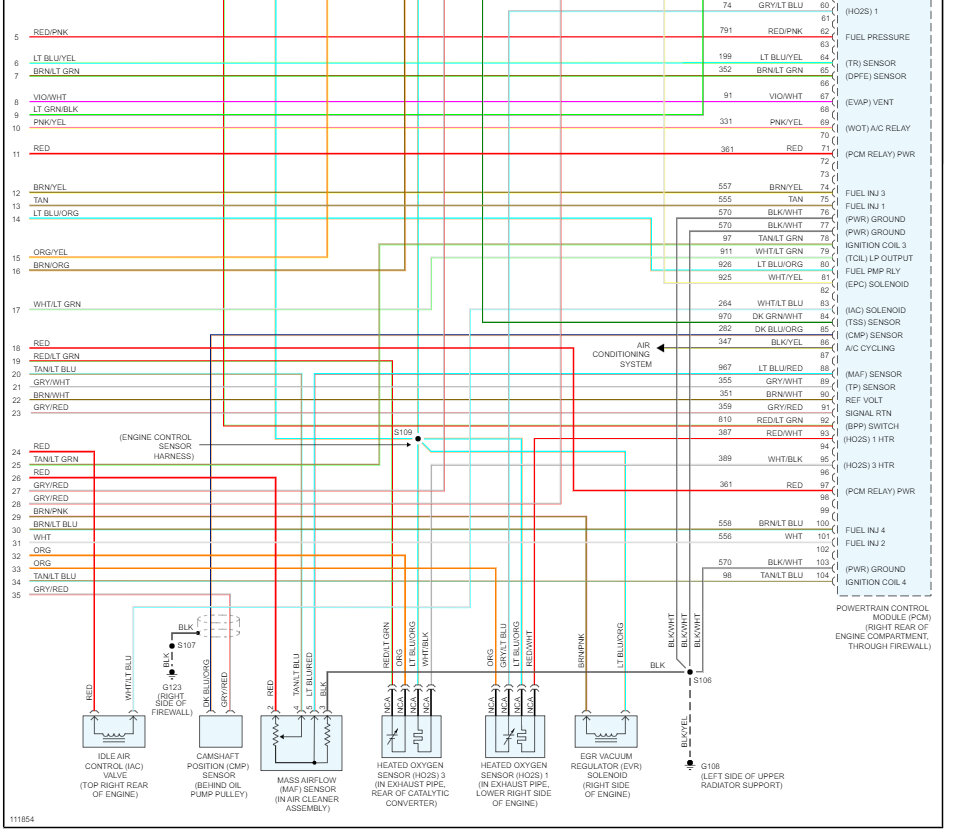

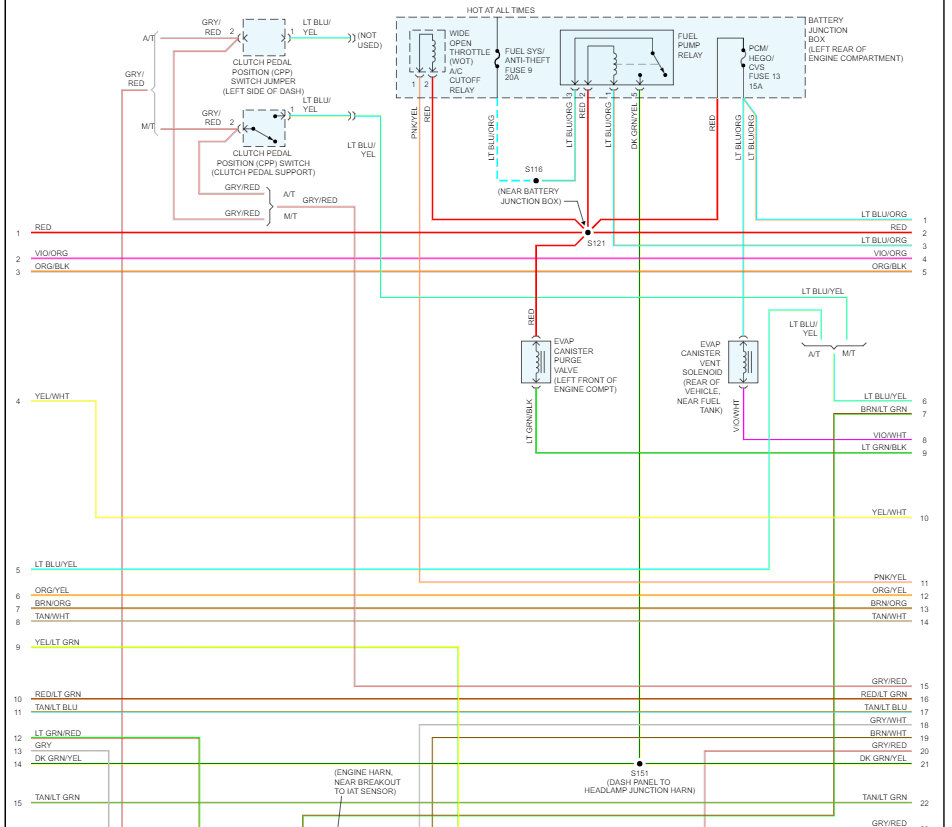

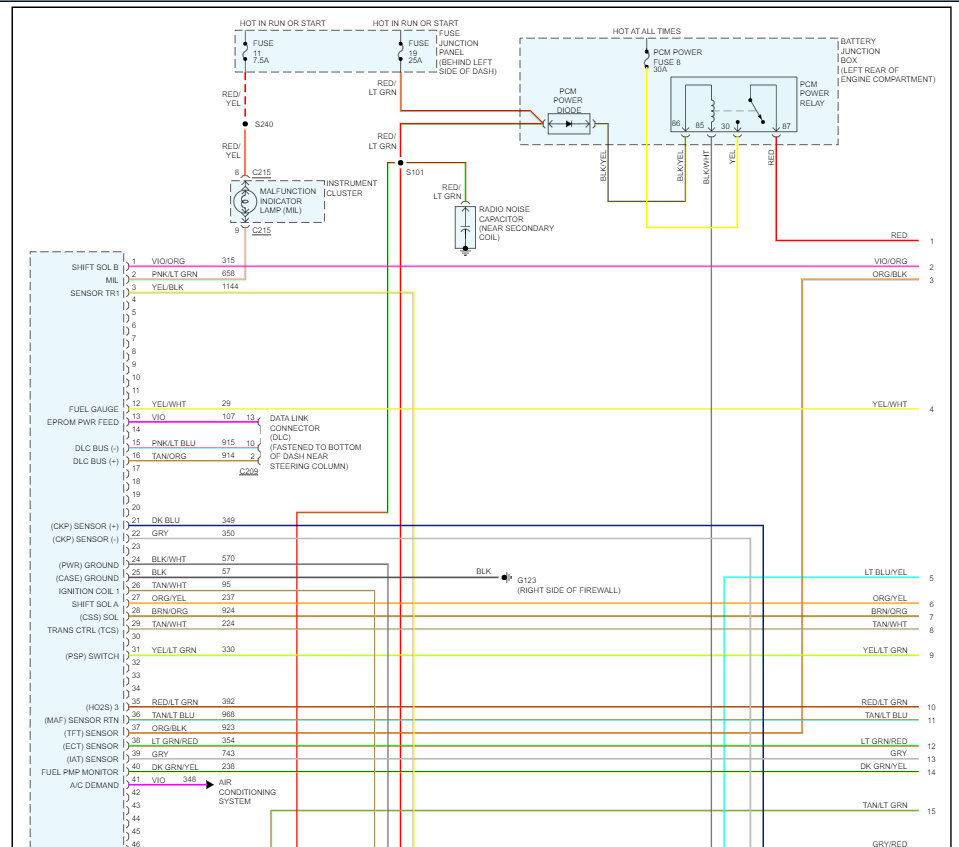

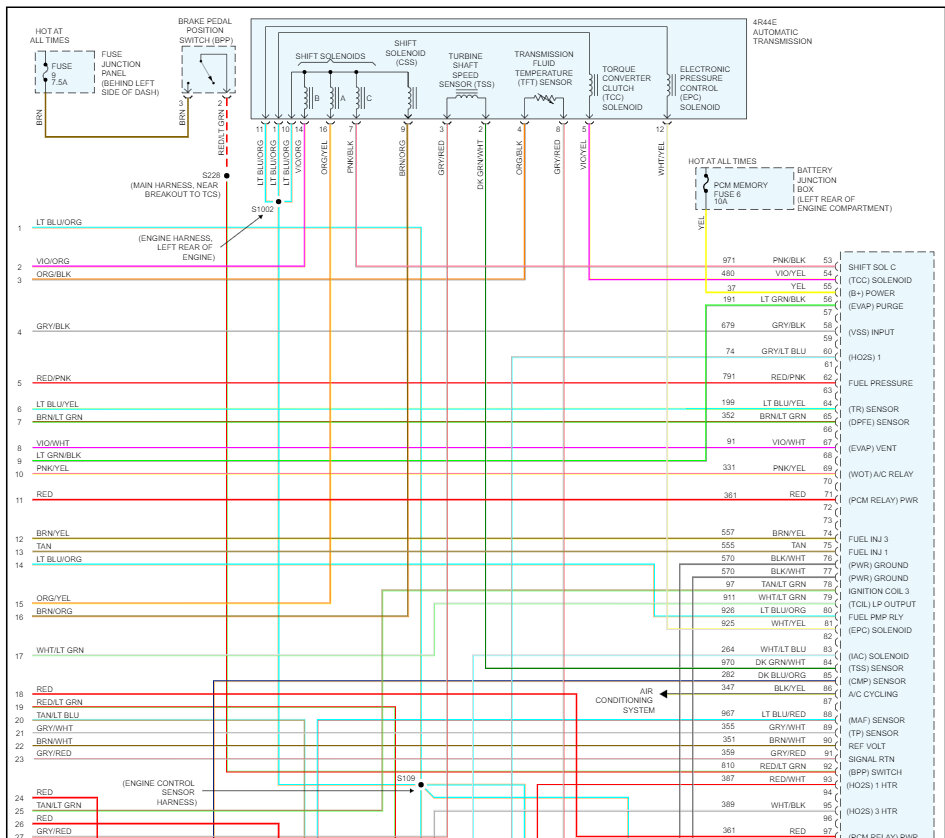

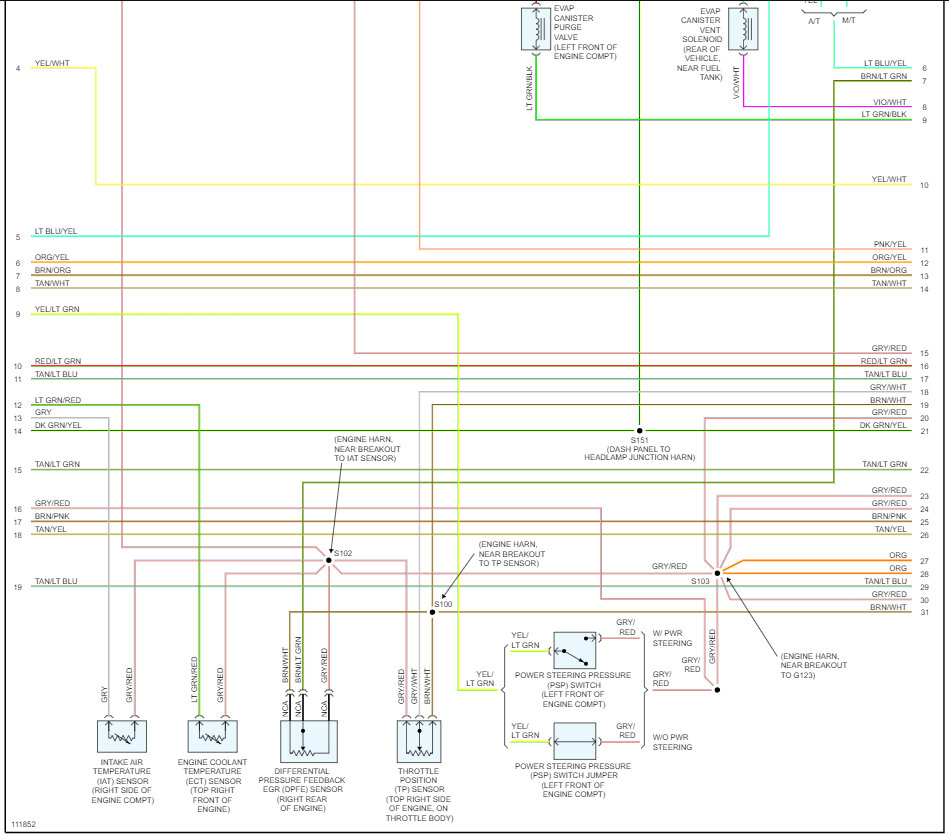

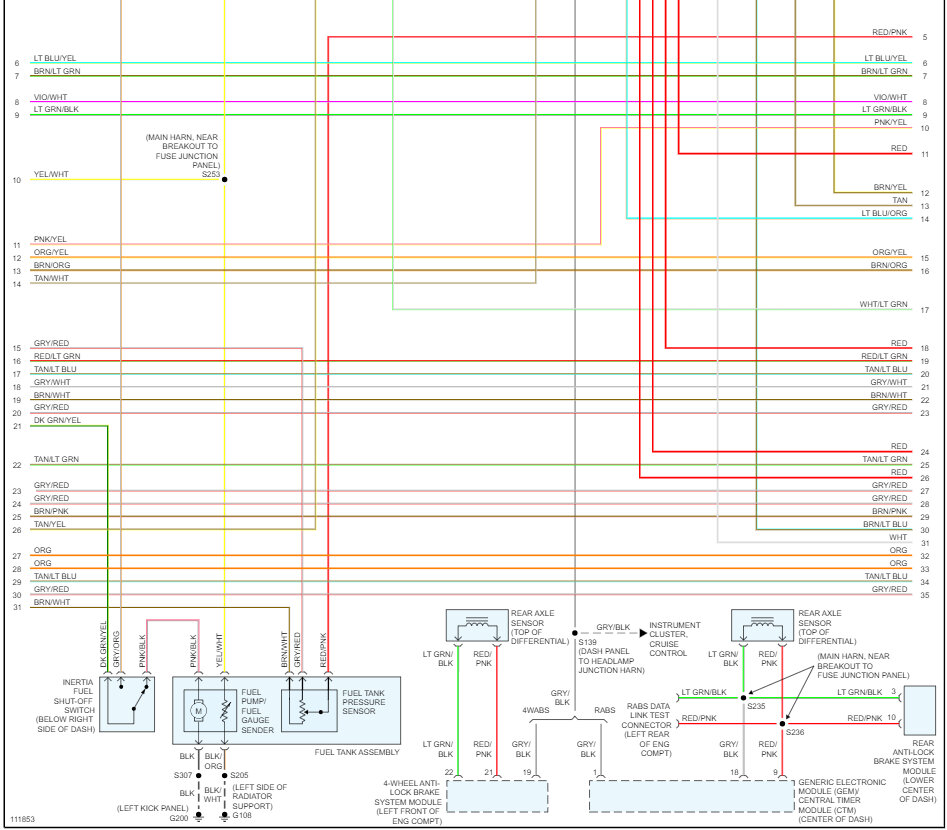

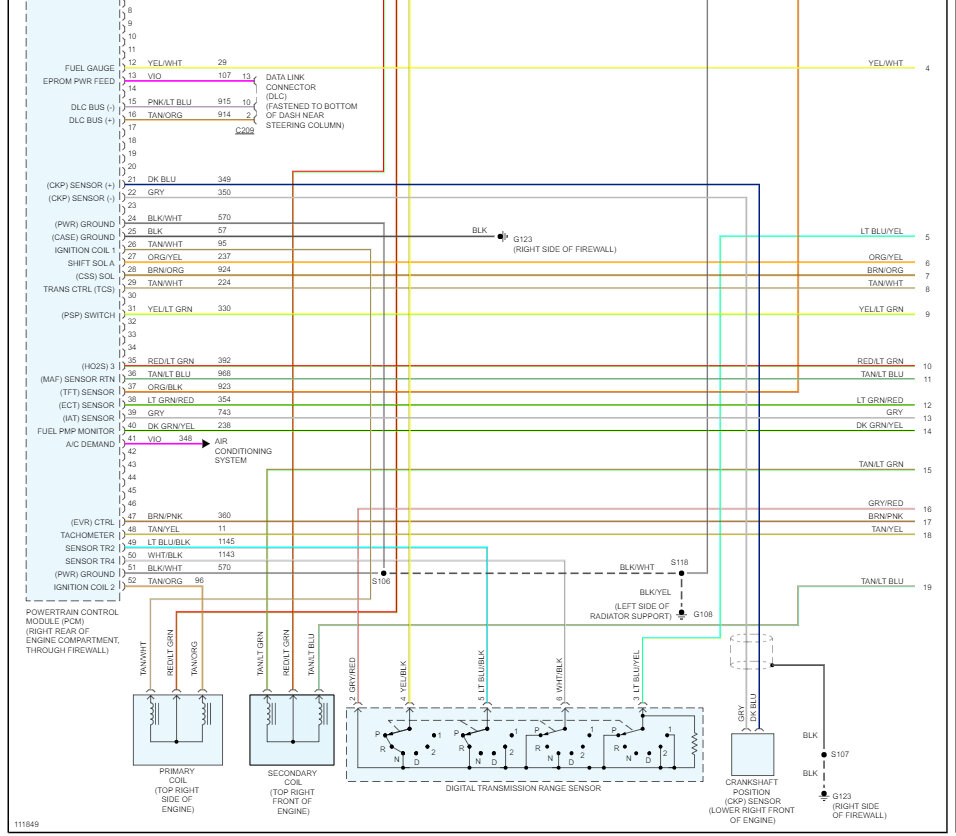

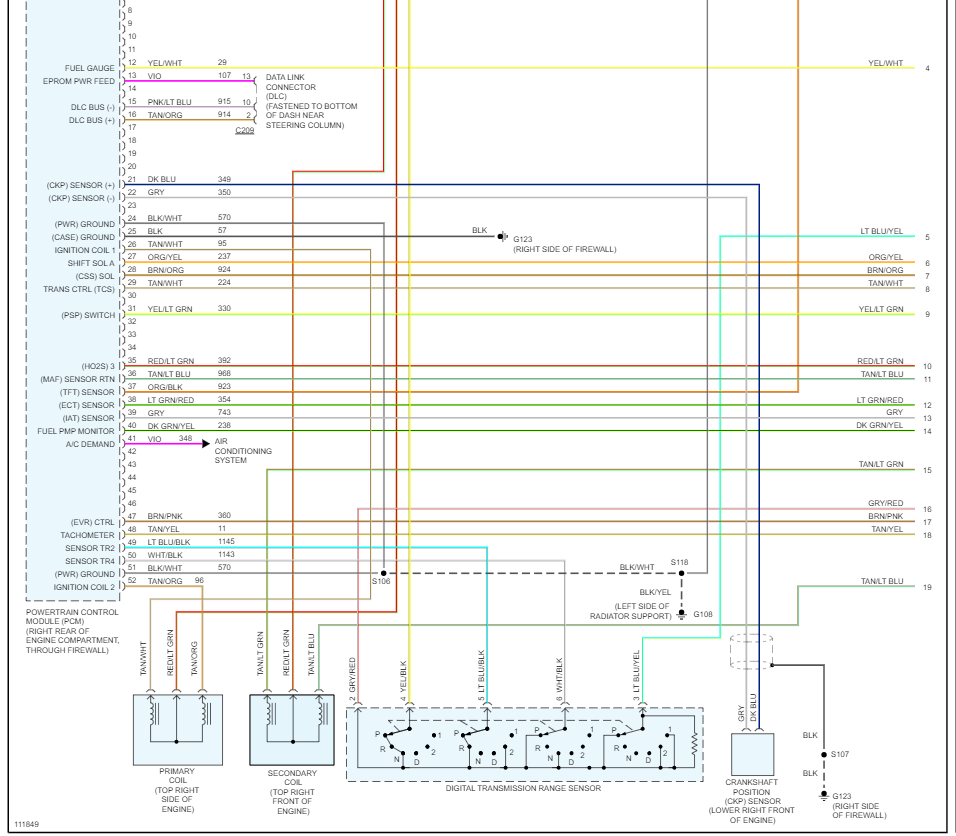

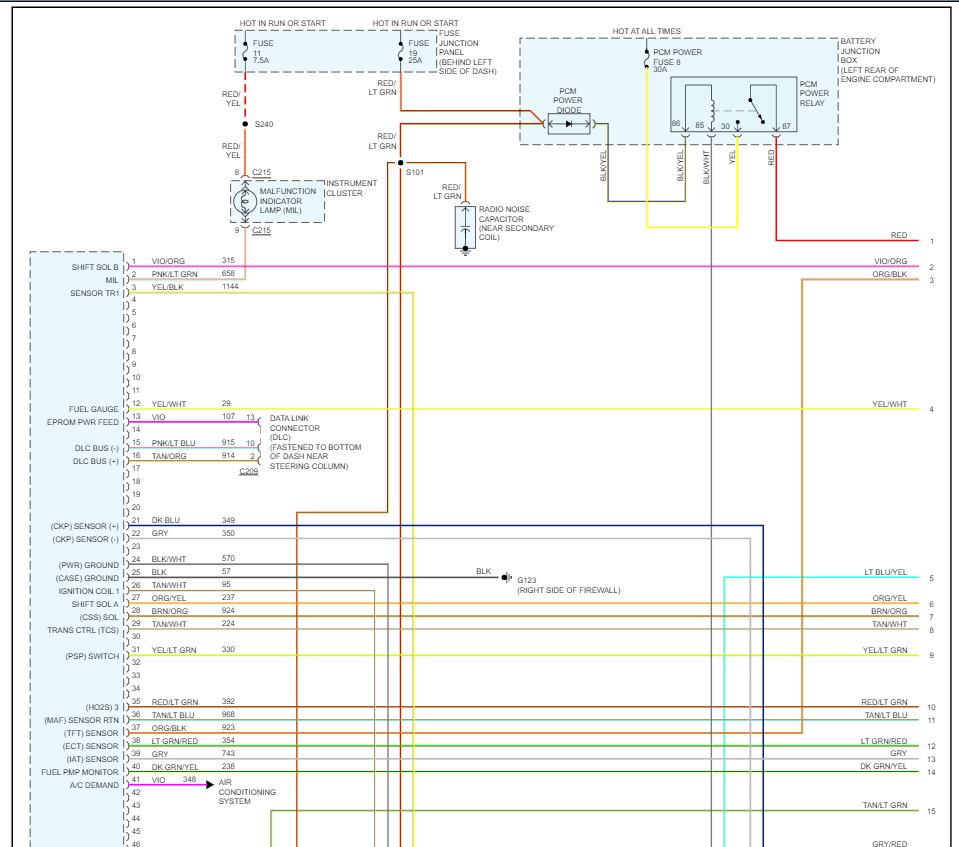

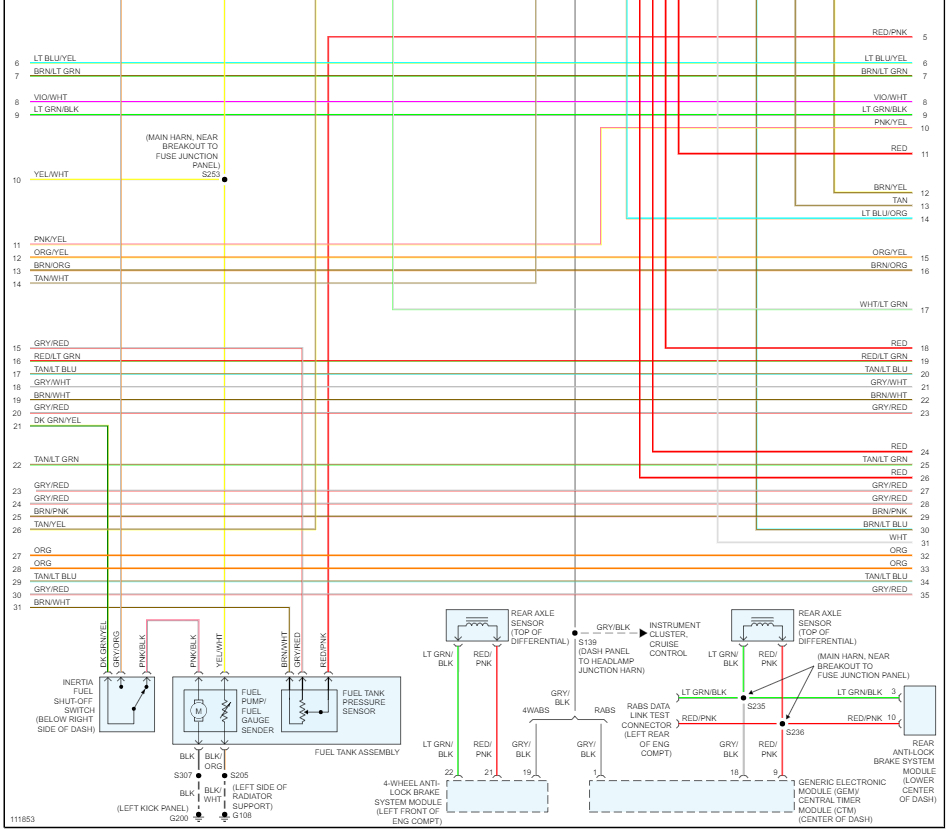

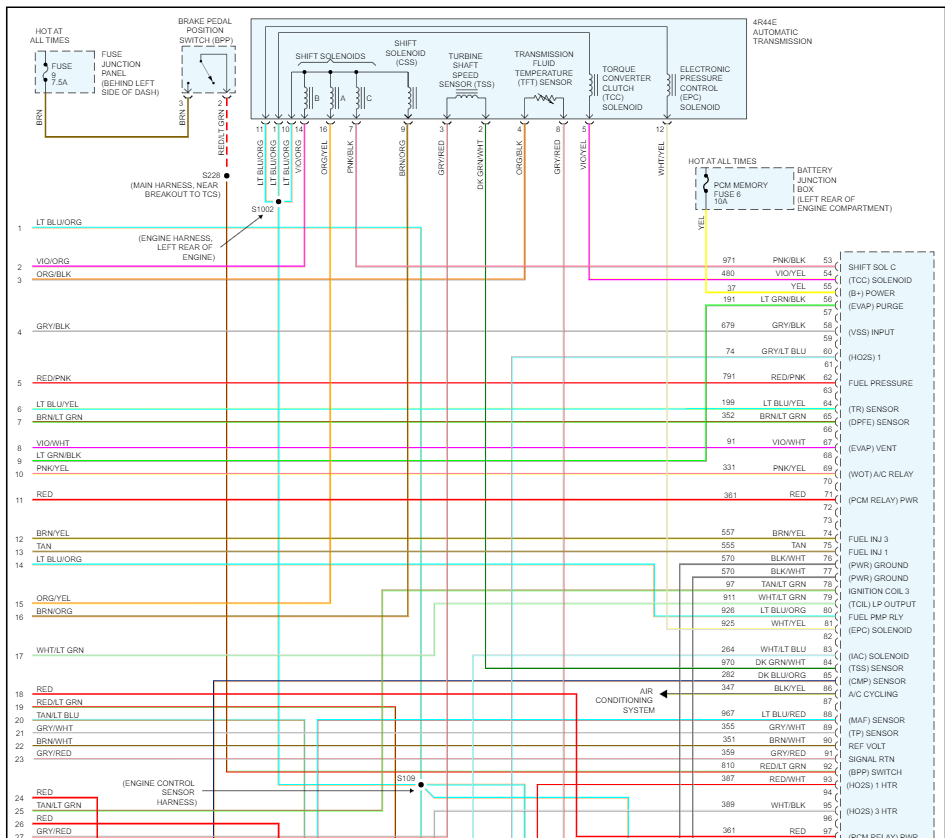

Good call, here are the engine wiring diagrams but I am not sure about the driver's side under the seat? Can you tell me what the wiring is going to? This guide can help you test the connections:

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
