I need wiring diagram for radio?
Mar 17, 2021 at 10:48 PM
Radio wiring diagram needed
2003 CADILLAC DEVILLE DTS
JULZAVEO
- MEMBER
- 8 POSTS
- FOLLOW
Repair Safety Notice:
This information is for general instructional purposes only. Vehicle repair can be dangerous.
Verify all information, follow manufacturer service procedures, use proper tools and safety equipment,
and consult a qualified repair shop when needed.
Advertisement
Hello, I'm Danny.
Here is the information you requested. This is an electrical wiring test tutorial for you to view:
https://www.2carpros.com/articles/how-to-check-wiring

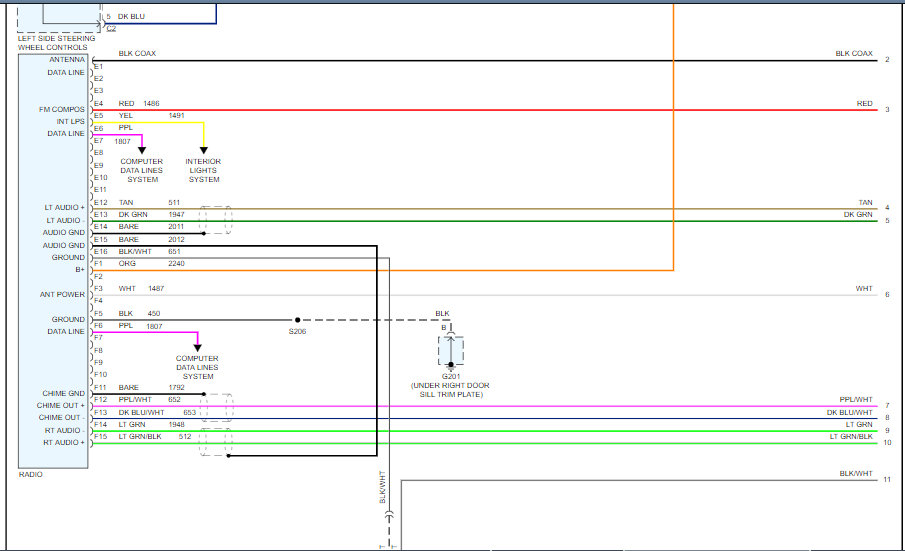

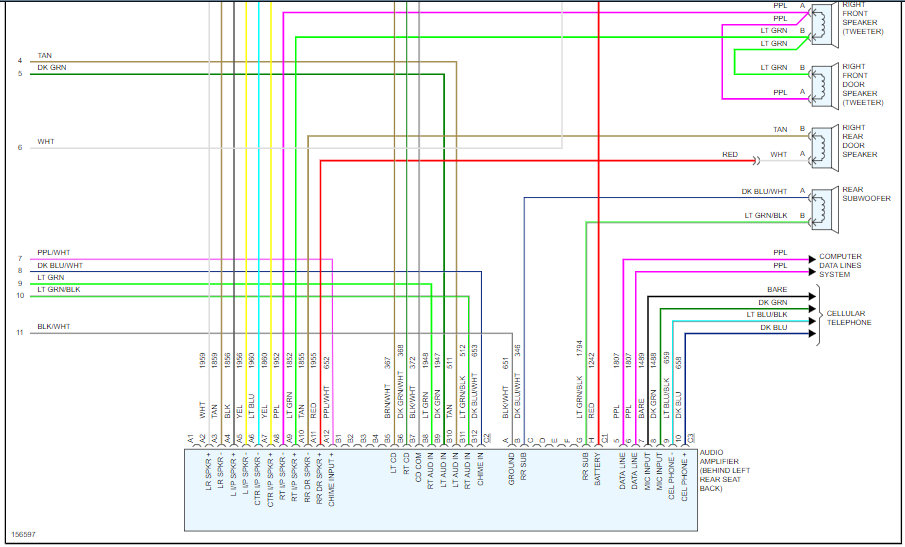

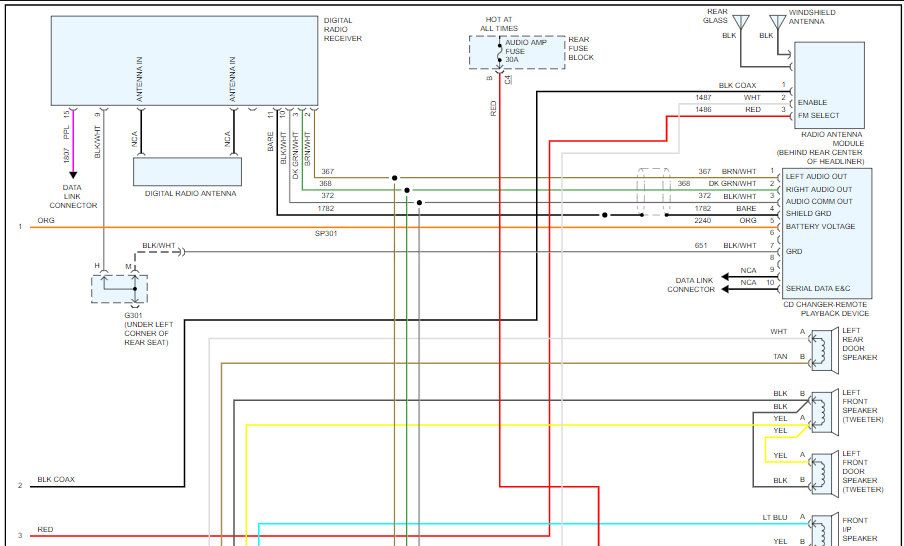

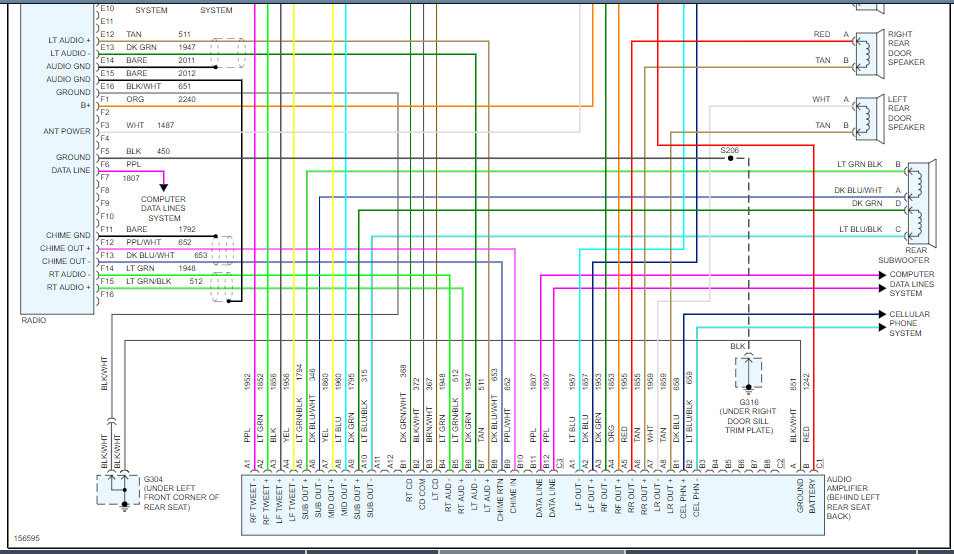

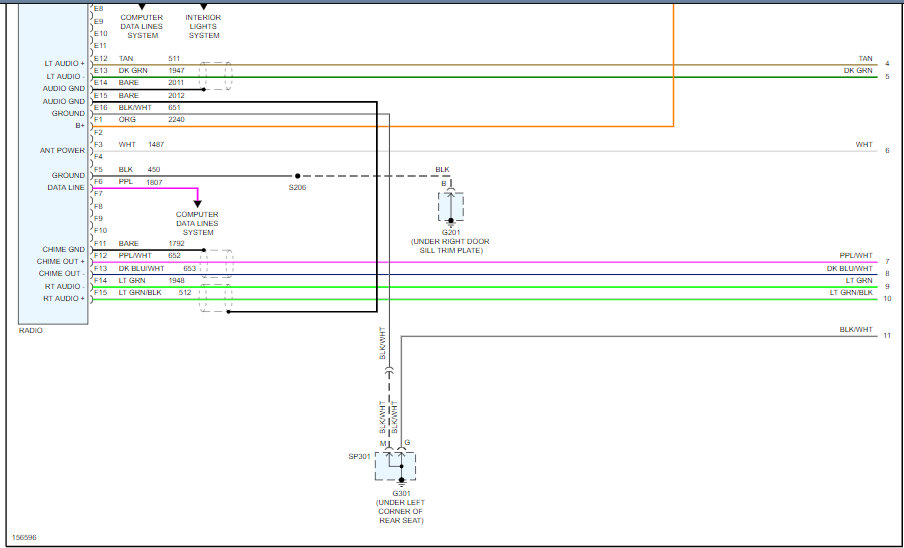

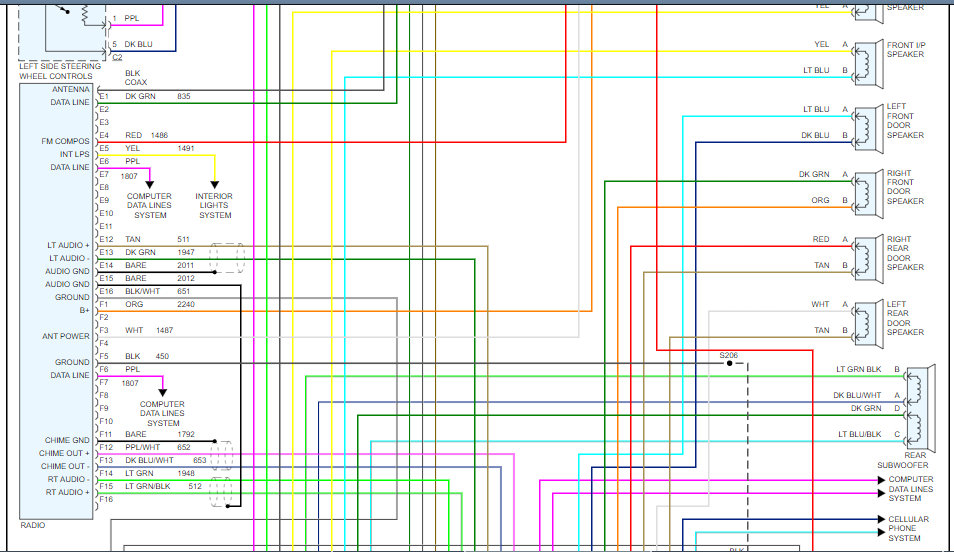

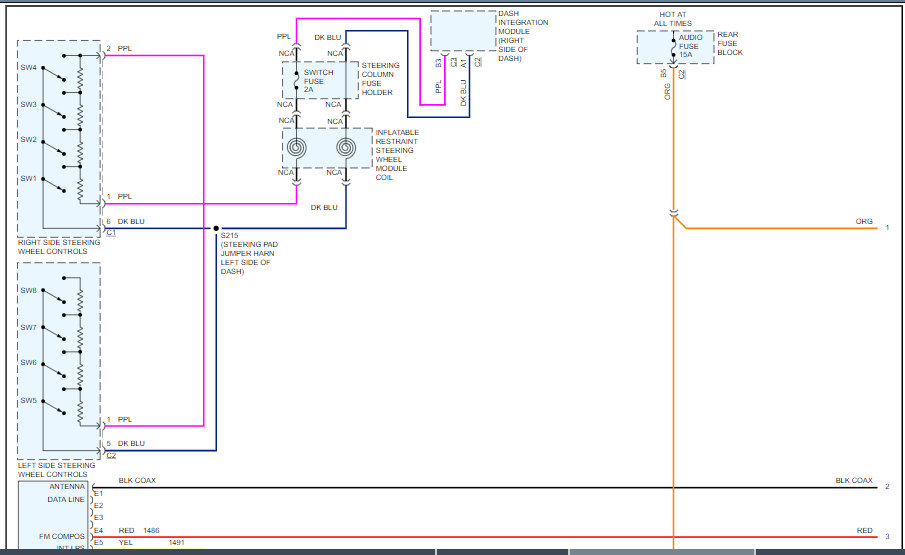

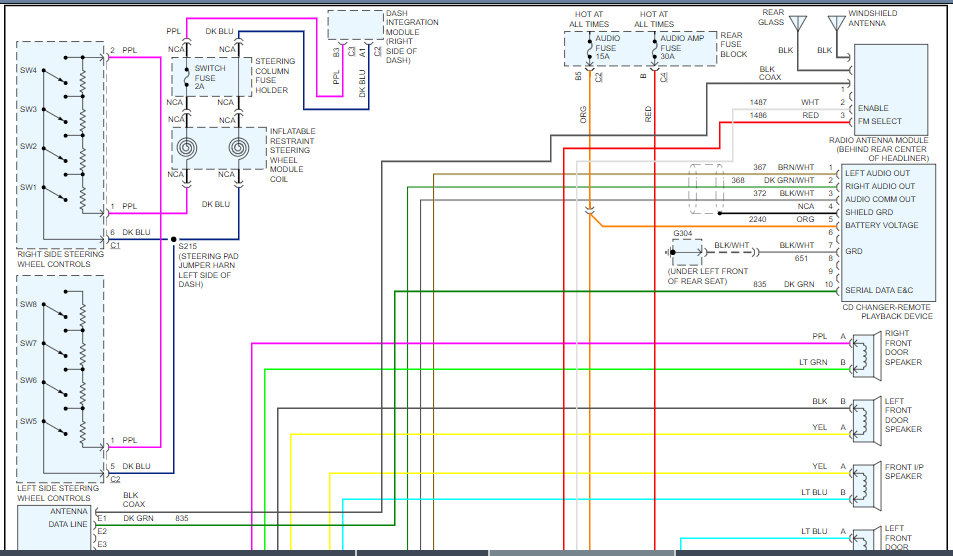

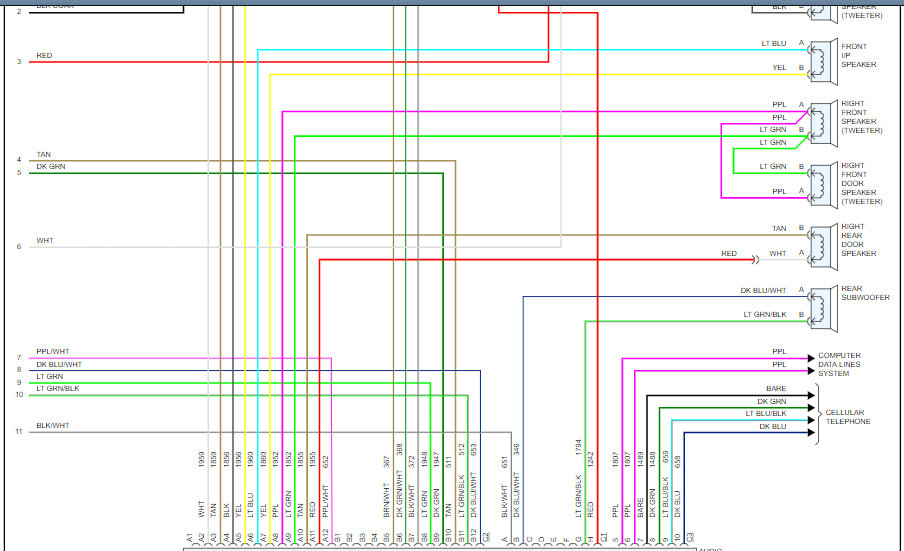

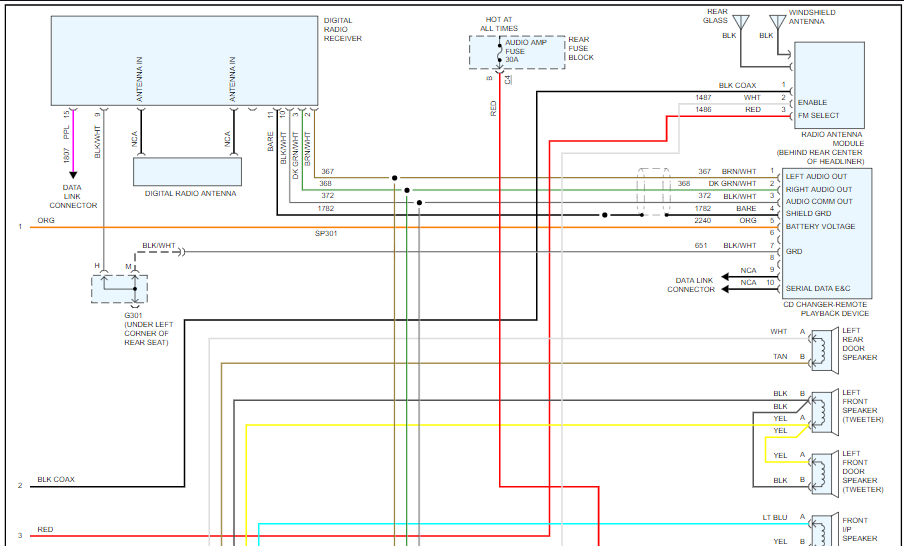

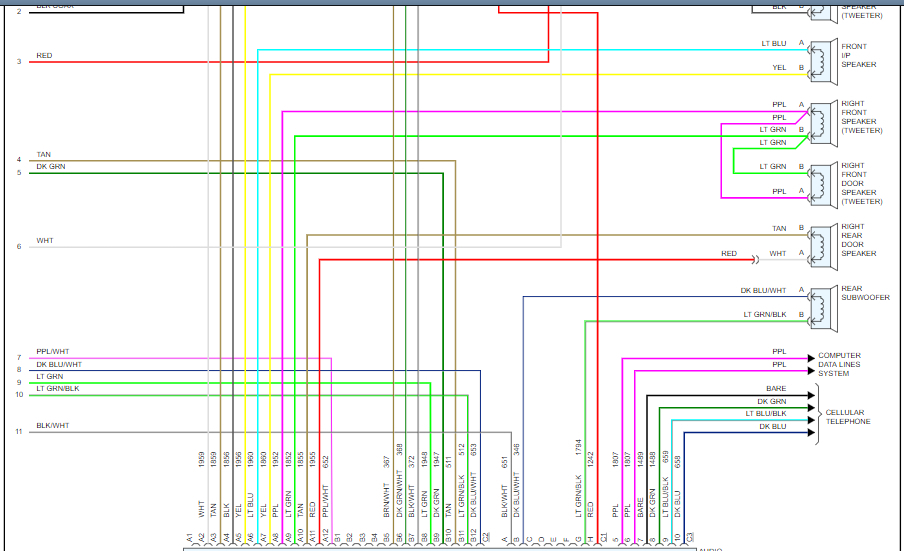

I've attached the radio wiring diagrams below for your car. I've cut the pictures into 3 pieces each so you can view larger. The first 6 pictures are for a Bose equipped audio system and the last 3 pictures are for without Bose system. Hope this helps and thanks for using 2CarPros.
Here is the information you requested. This is an electrical wiring test tutorial for you to view:
https://www.2carpros.com/articles/how-to-check-wiring
I've attached the radio wiring diagrams below for your car. I've cut the pictures into 3 pieces each so you can view larger. The first 6 pictures are for a Bose equipped audio system and the last 3 pictures are for without Bose system. Hope this helps and thanks for using 2CarPros.
