2001 Toyota Camry DAIGRAM OF ELECTRIC AIR CONDITIONER

Tiny
CHETRAROUN
  • MEMBER
  • 2001 TOYOTA CAMRY
Electrical problem
2001 Toyota Camry 4 cyl Two Wheel Drive Manual

Daigram of air conditioner electric
Sunday, August 22nd, 2010 AT 2:57 AM

1 Reply

Tiny
KHLOW2008
  • MECHANIC
  • 41,814 POSTS
Hi CHETRAROUN,

Here they are.

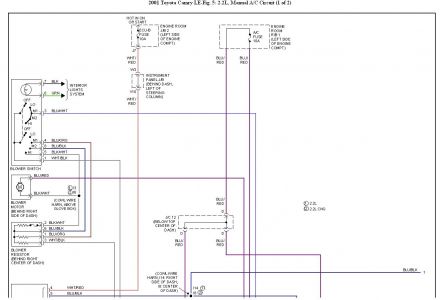

https://www.2carpros.com/forum/automotive_pictures/192750_ManualACcircuit01CamryFig05a_1.jpg

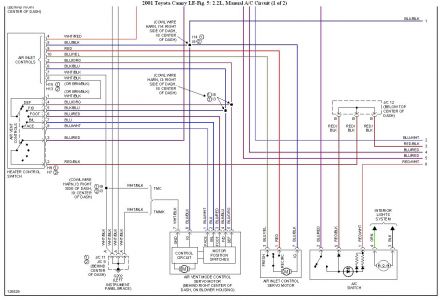

https://www.2carpros.com/forum/automotive_pictures/192750_ManualACcircuit01CamryFig05b_1.jpg

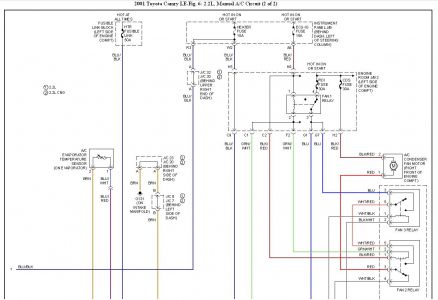

https://www.2carpros.com/forum/automotive_pictures/192750_ManualACcircuit01CamryFig06a_1.jpg

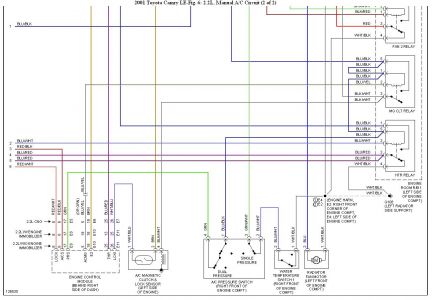

https://www.2carpros.com/forum/automotive_pictures/192750_ManualACcircuit01CamryFig06b_1.jpg
