Power seat/seat belt wiring diagram needed

Tiny
LOUIS HICKMAN
  • MEMBER
  • 2002 MAZDA TRIBUTE
  • 3.0L
  • 6 CYL
  • 2WD
  • AUTOMATIC
  • 148,000 MILES
Trying to find the power seat/seat belt wiring diagram for my vehicle listed above.
Friday, April 24th, 2020 AT 7:22 PM

3 Replies

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,755 POSTS
Hi,

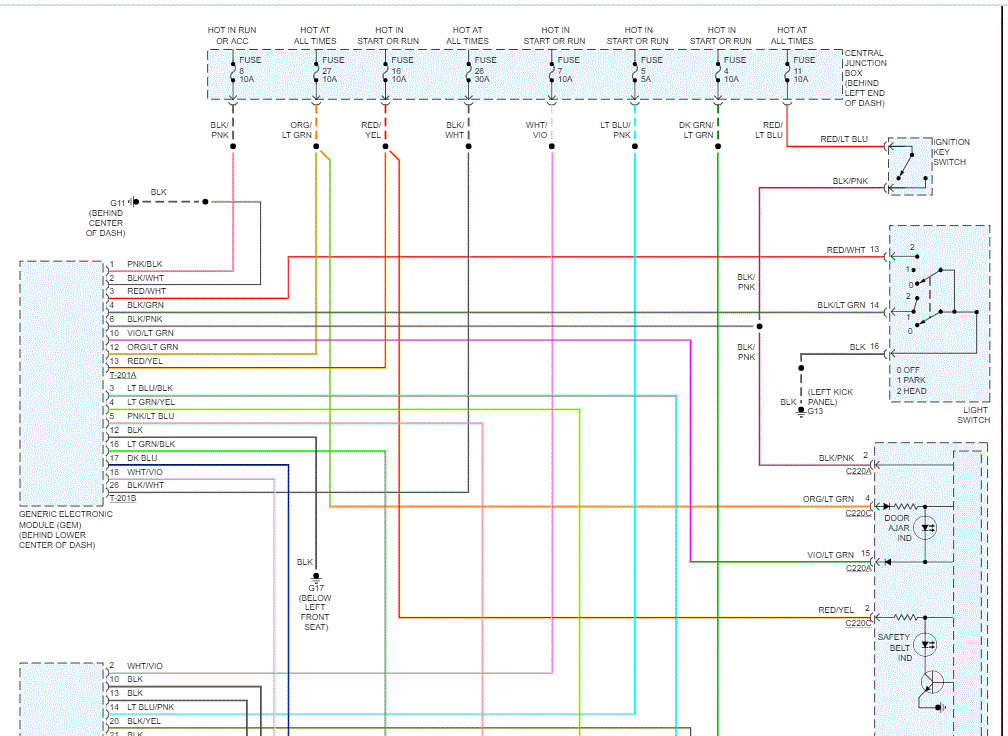

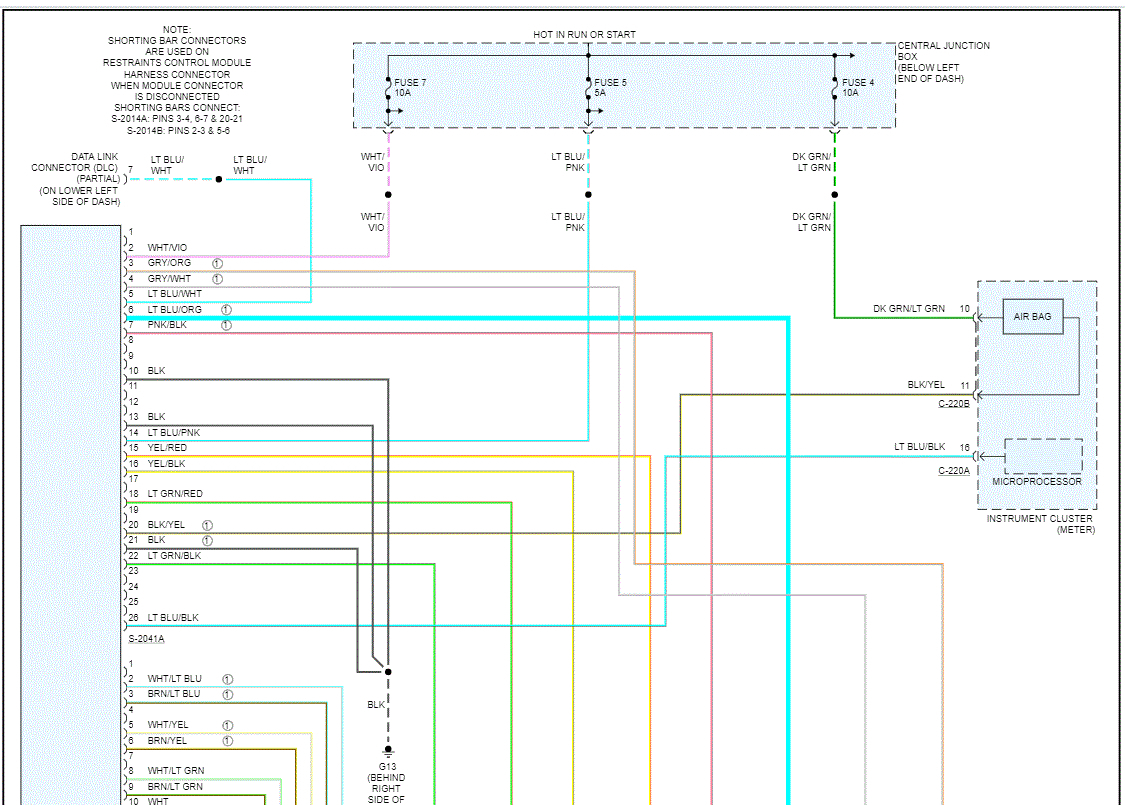

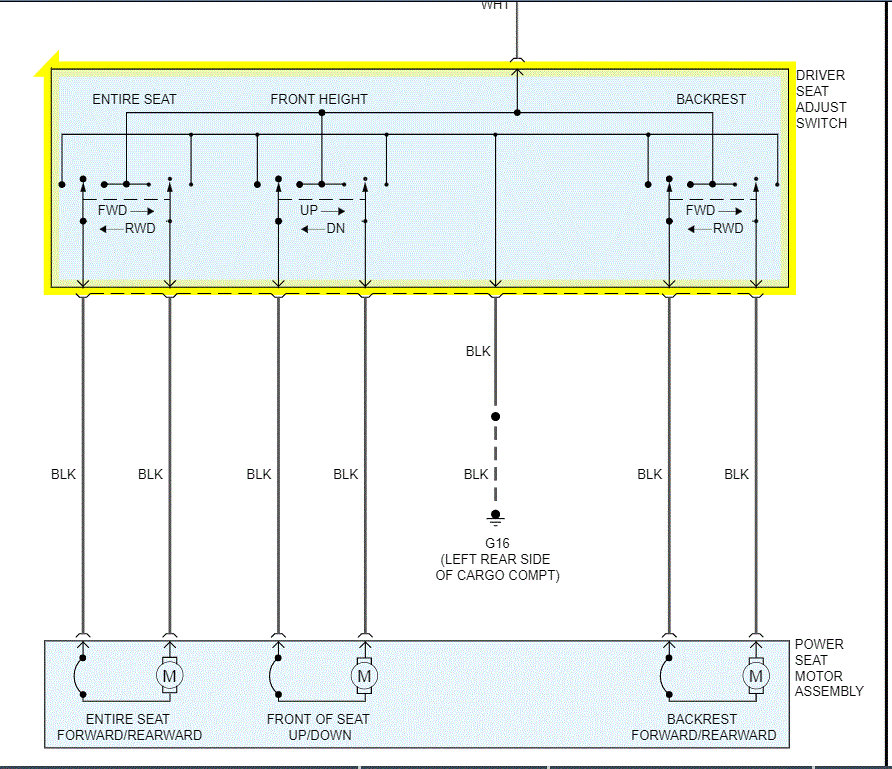

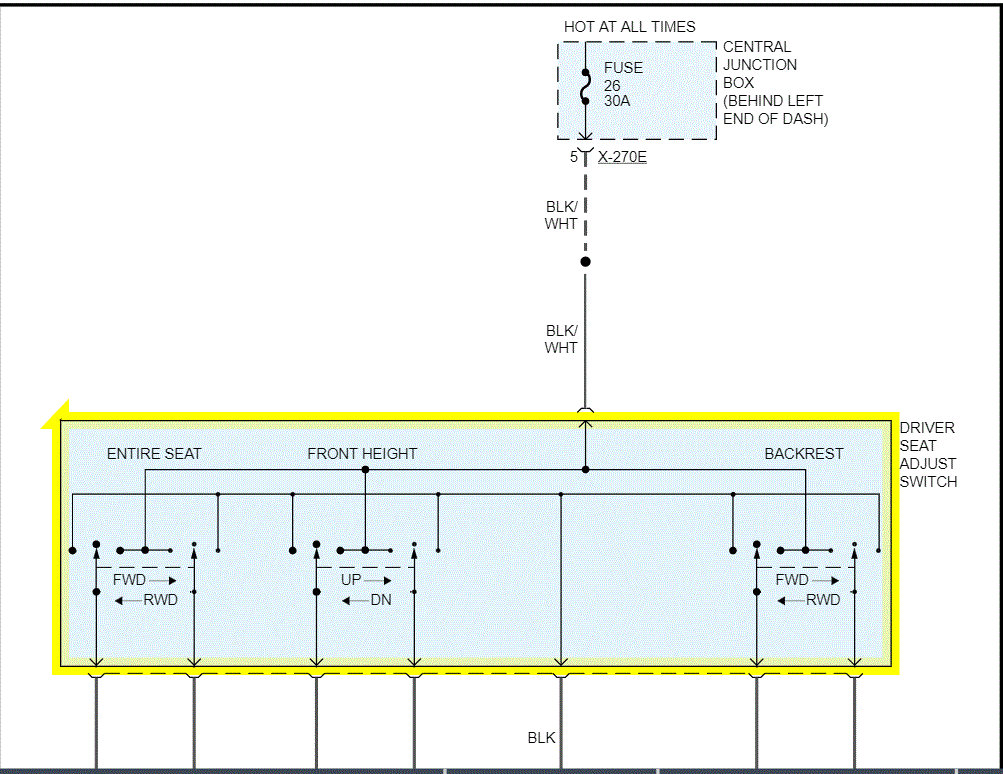

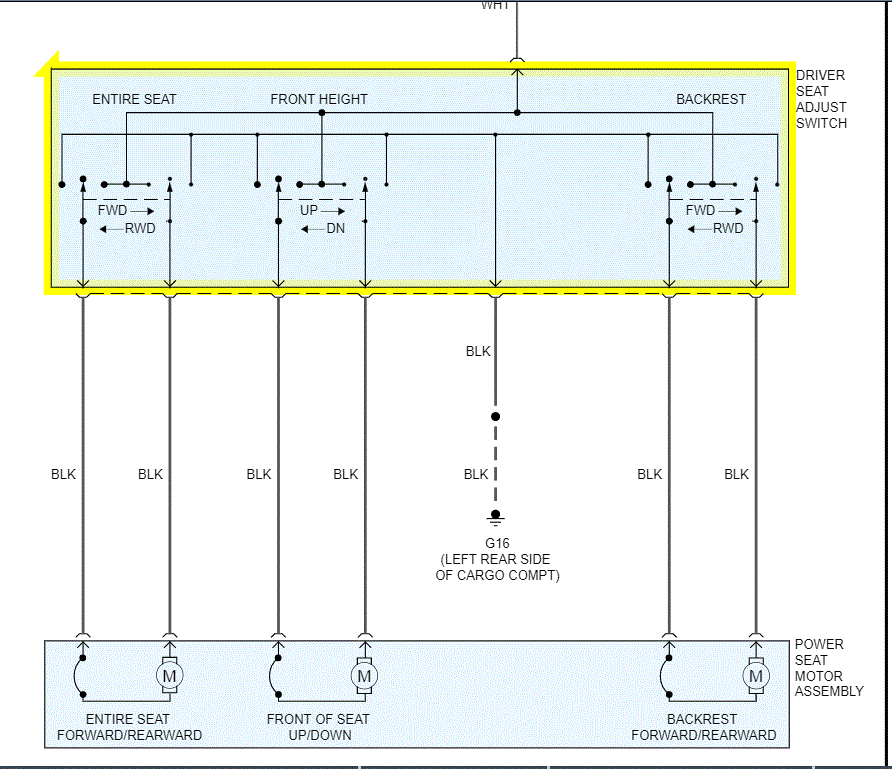

If you look at pictures 1 and 2, I attached the wiring schematic for the power seat. I cut it in half to make it more readable for you. I did overlap it so you can easily follow it. Pictures 3 and 4 are the only ones I can locate for the seat belt warning system.

Let me know if this helps or of you have other questions.

Take care,
Joe
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Friday, April 24th, 2020 AT 9:17 PM
Tiny
LOUIS HICKMAN
  • MEMBER
  • 2 POSTS
Joe, Thank you so much. Do You have access to the schematics to Supplemental Restraint System? I'm wondering if that's what the yellow tubes on the side of Belt receivers are?
Was this
answer
helpful?
Yes
No
Monday, April 27th, 2020 AT 7:34 PM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,755 POSTS

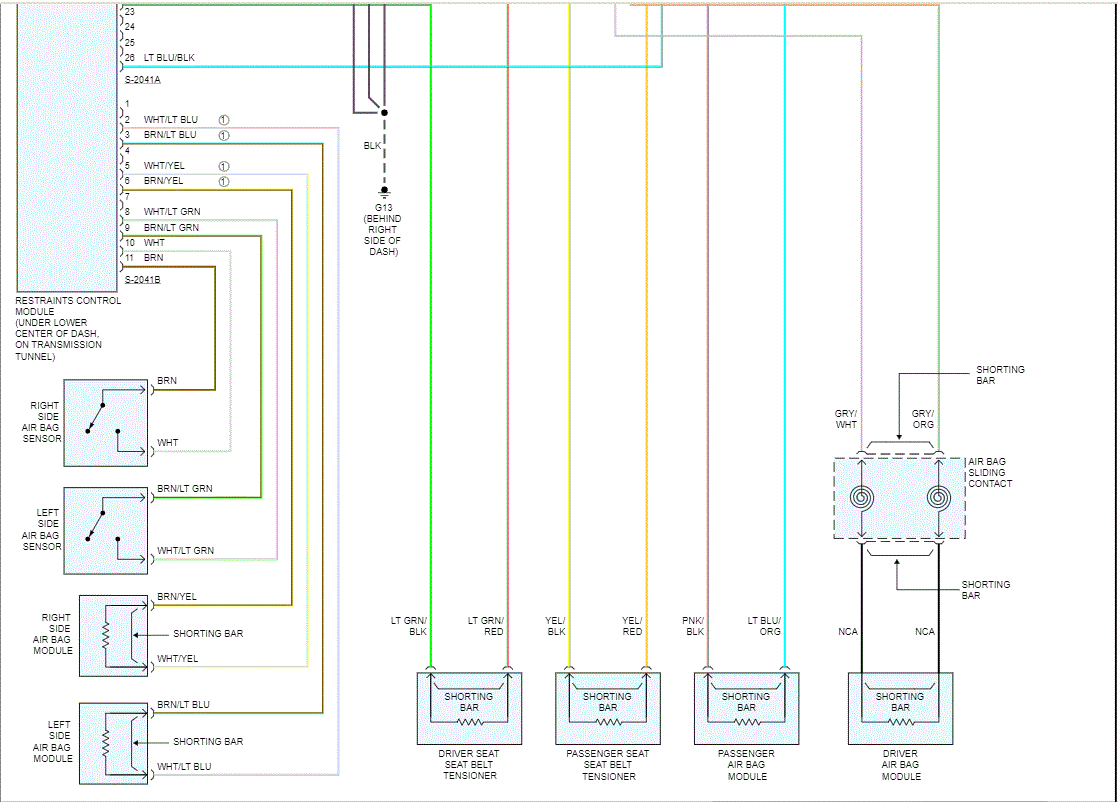

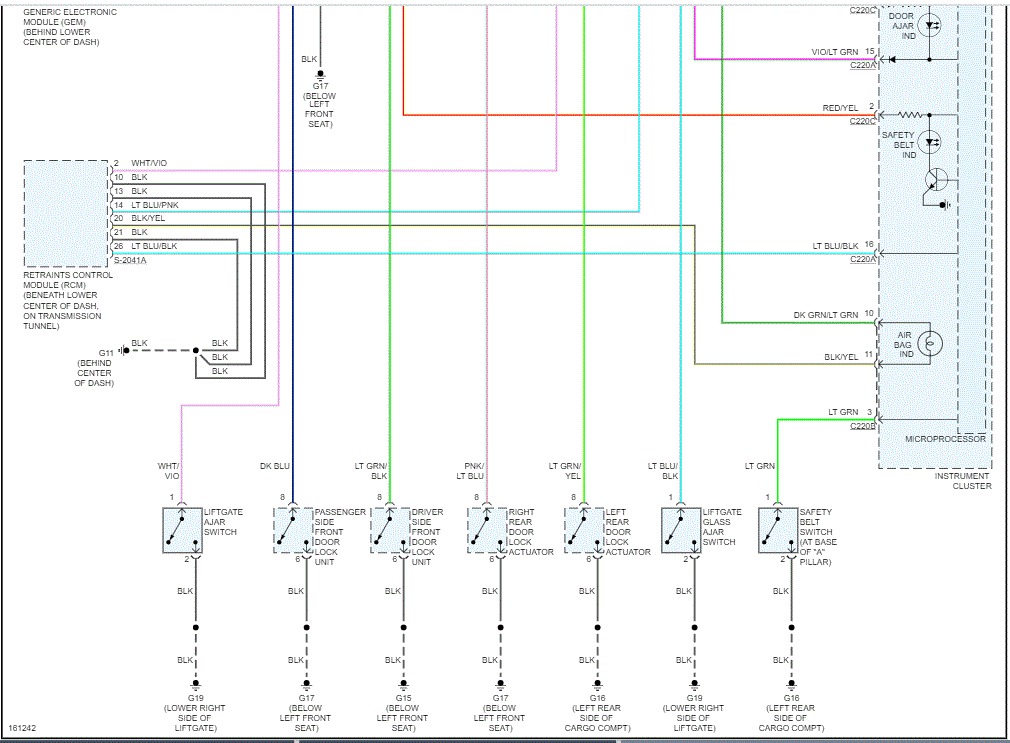

Yellow tubes? I'm not sure I understand. However, I attached two pics below of the schematics related to the supplemental restraint system. I overlapped them so you could follow them.

Let me know if this is what you wanted.

Take care,
Joe
Images (Click to make bigger)
Thumb
Thumb
Was this
answer
helpful?
Yes
No
Monday, April 27th, 2020 AT 8:43 PM
