Need a diagram of engine vacuum lines connections

Tiny
HUMBLE HOLMES
  • MEMBER
  • 1988 FORD FESTIVA
  • 1.3L
  • 4 CYL
  • 2WD
  • MANUAL
  • 168,000 MILES
Previous owner disconnected several engine vacuum lines and I am not familiar with this 1988 Festiva setup. Would like a diagram (or something) to help reconnect the line properly. The location of a reliable web page or manual or anything would help and be greatly appreciated.
SPONSORED LINKS
Wednesday, August 15th, 2018 AT 10:18 AM

5 Replies

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,885 POSTS
Hi and thanks for using 2CarPros. Com.

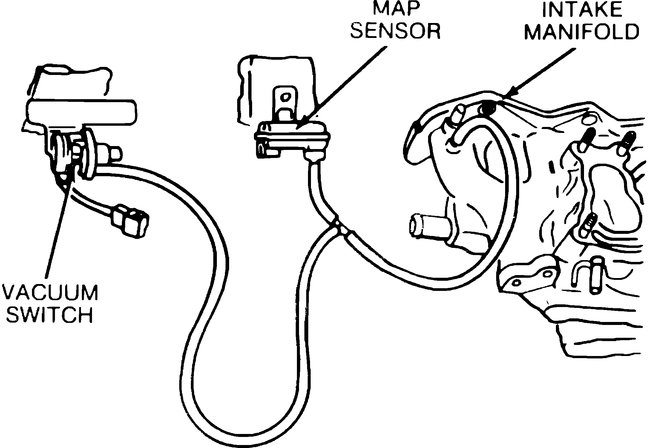

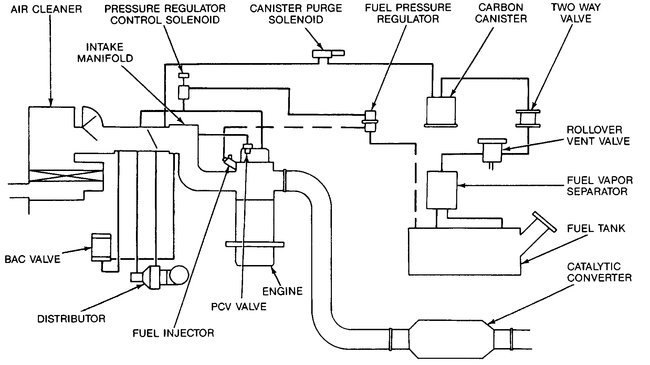

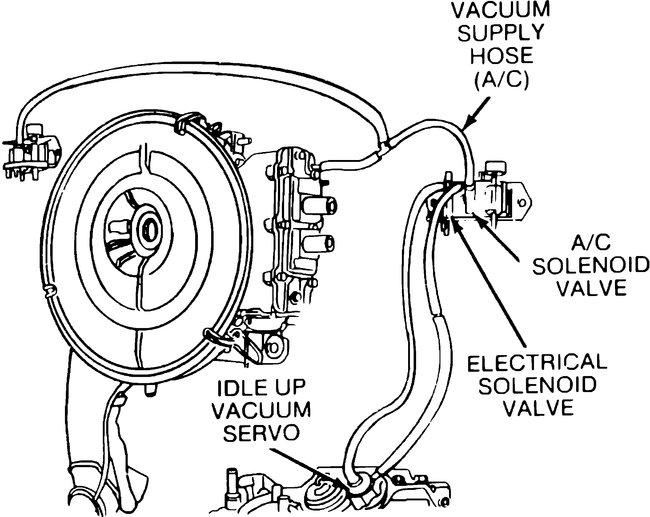

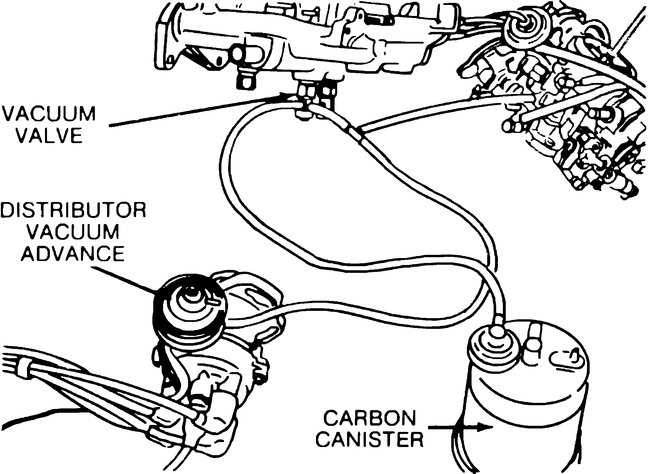

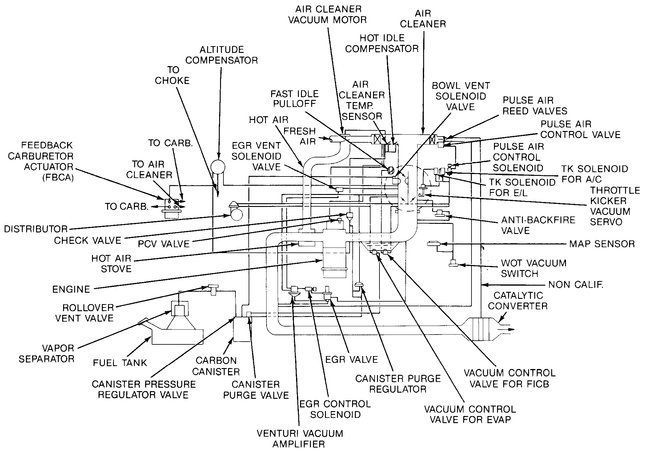

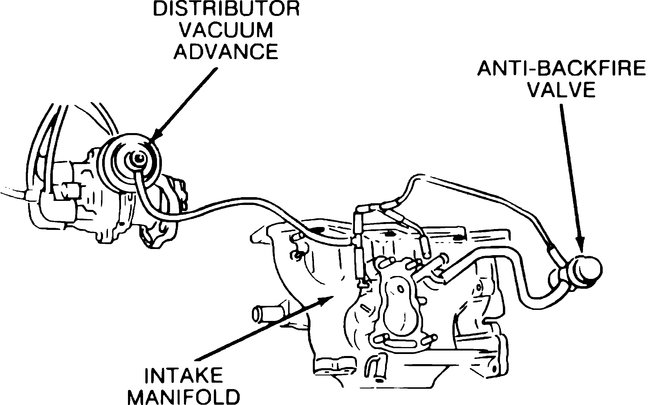

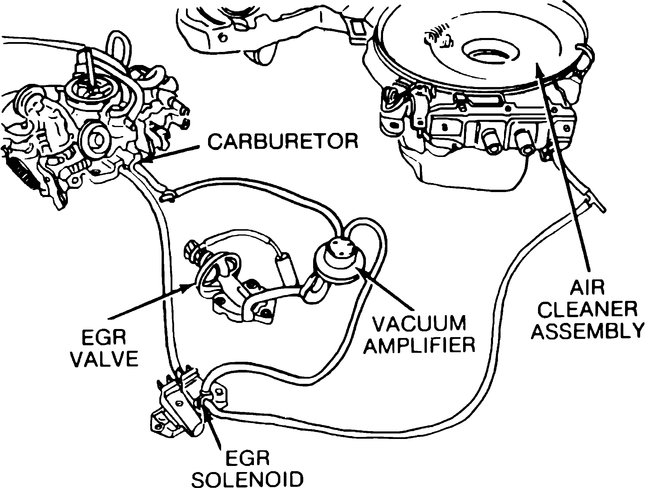

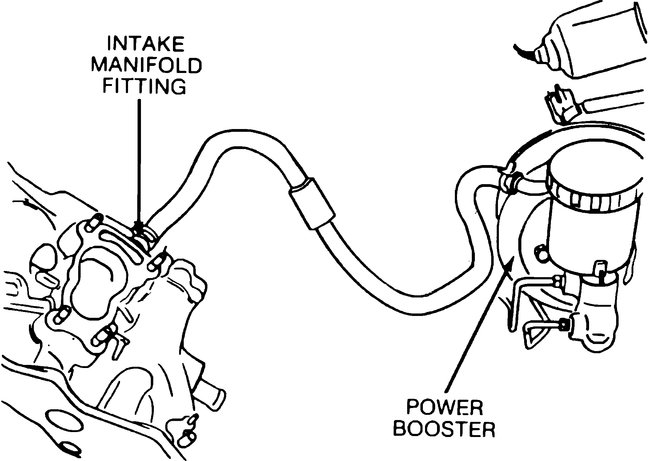

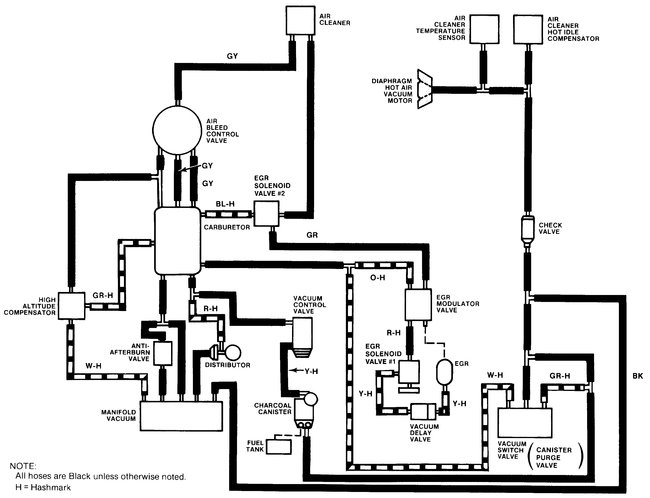

I have attached all the shop manual schematics for your review. They are broken down by components. The last two pictures are routing pictures. They basically show how the hoses ran originally. Picture 8 is for a carburetor design and picture 9 is for one which is fuel injected. I hope this helps.

Let me know if you need more information or have a questions.

Take care,
Joe
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Wednesday, August 15th, 2018 AT 9:31 PM
Tiny
HUMBLE HOLMES
  • MEMBER
  • 3 POSTS
Do not know if what I am looking for exist. All my vacuum lines are color coded. Looking for something that tells me what they are for.
Was this
answer
helpful?
Yes
No
Thursday, August 16th, 2018 AT 5:43 AM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,885 POSTS
Hi again. I am sorry. I looked through a few manuals and nothing indicates vacuum hoses by color. I can try to help you with the ones I sent. If you have a specific question or questions, ask and I should be able to help.

Let me know,
Joe
Was this
answer
helpful?
Yes
No
Thursday, August 16th, 2018 AT 6:25 PM
Tiny
HUMBLE HOLMES
  • MEMBER
  • 3 POSTS
  • 1988 FORD FESTIVA
  • 1.3L
  • 4 CYL
  • 2WD
  • MANUAL
  • 168,000 MILES
Previous owner did not replace disconnected vacuum lines correctly. Need to know proper order. Would like to see a good diagram (images if possible) of their proper connection order.

Are there any reliable websites that have adequate instructions for Festiva repairs?
Was this
answer
helpful?
Yes
No
Thursday, August 16th, 2018 AT 7:49 PM (Merged)
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,885 POSTS
Hi and thanks for using 2CarPros. Com.

I think I may have answered this question for another post. Not sure if it is you or not, so here are the schematics.

Let me know if this helps.

Take care,
Joe
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
