CHAD CARTER DAVID
  • MEMBER
  • 2005 CHEVROLET MALIBU
  • 6 CYL
  • 2WD
  • AUTOMATIC
  • 200,000 MILES
It’s burnt out need a wiring diagram.
Sunday, February 10th, 2019 AT 2:42 PM

1 Reply

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,885 POSTS
Hi and thanks for using 2CarPros.

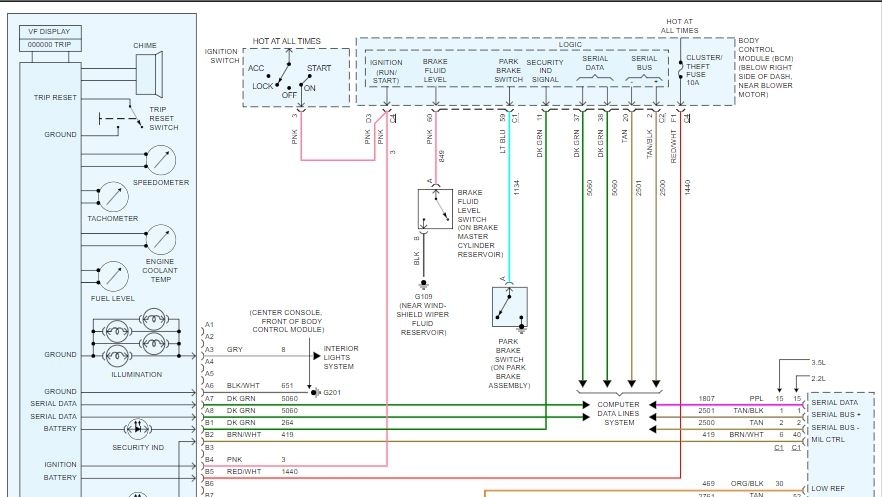

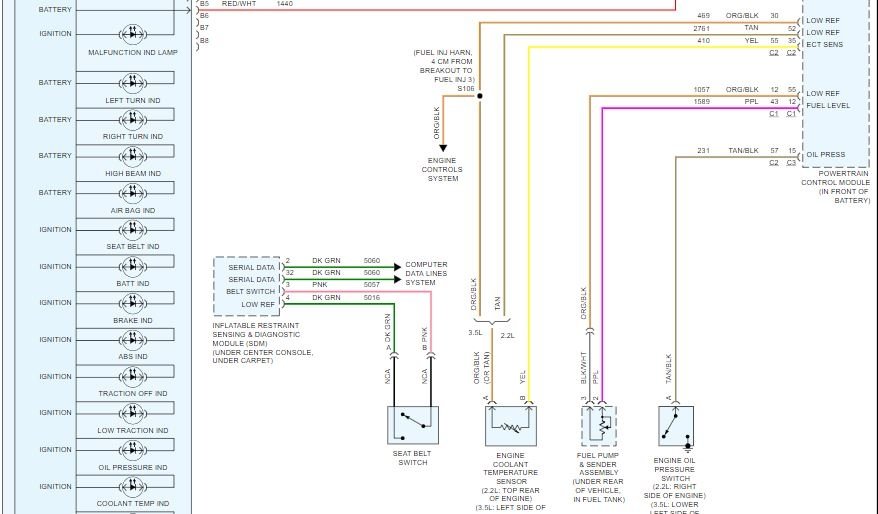

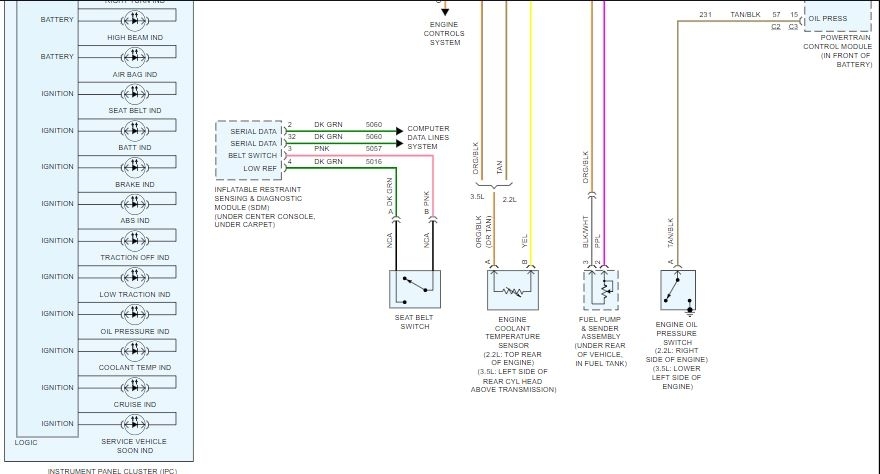

I have attached the entire wiring schematic for the instrument cluster. I had to break it into three parts because of its size. However, I overlapped each picture so you can follow it.

Let me know if this is what you needed or have other questions.

Take care,
Joe
