I need wiring schematic for box bed?

Tiny
KARLA ZEN ART
  • MEMBER
  • 1997 GMC C1500
  • 100,000 MILES

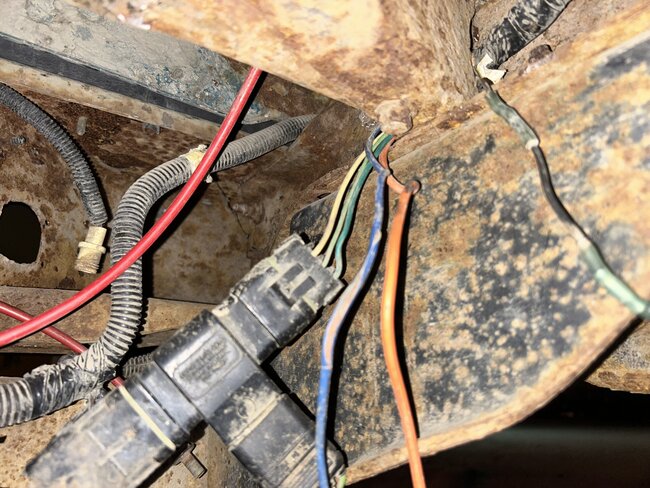

I have some loose wiring down by the spare tire on the main rail on the left-hand side of the truck box and I’m not getting power to my rear. In need of schematics.
Thank you.

GMC 1997 k1500 5.7 Lt.
Images (Click to make bigger)
Thumb
Thumb
Saturday, April 1st, 2023 AT 3:15 AM

5 Replies

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,874 POSTS
Hi,

If it is an aftermarket box on the rear, the wiring may have been changed by the body company that installed it.

Take a look and let me know if they help.

Joe

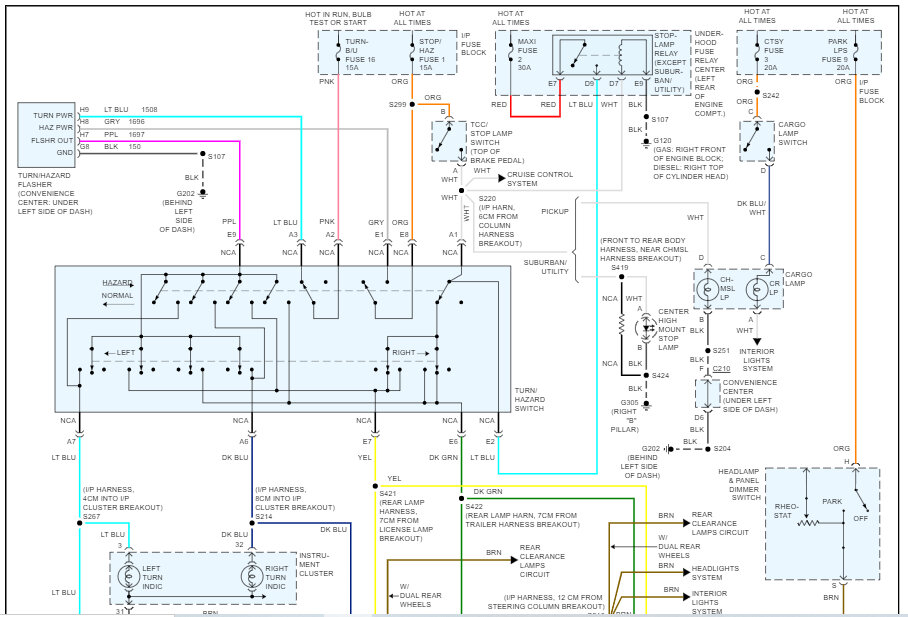

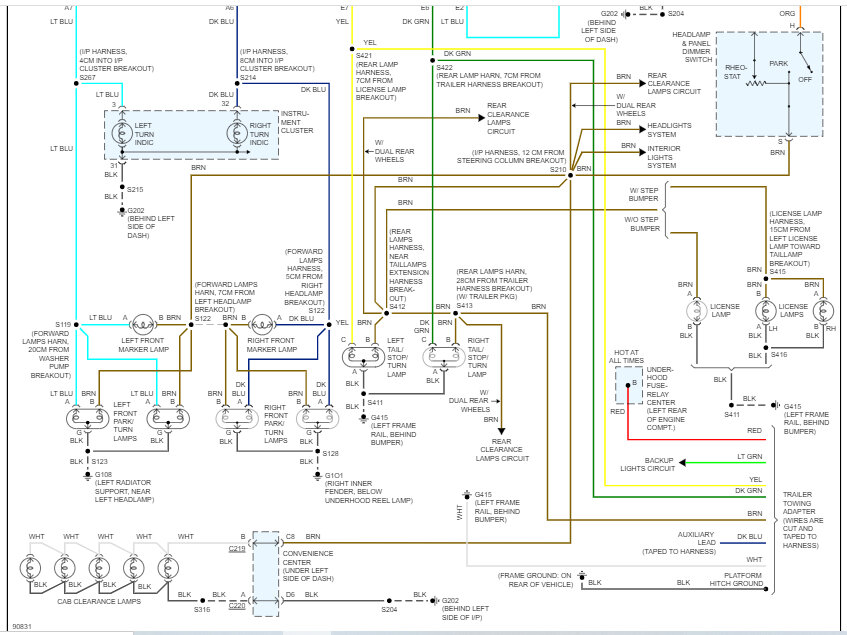

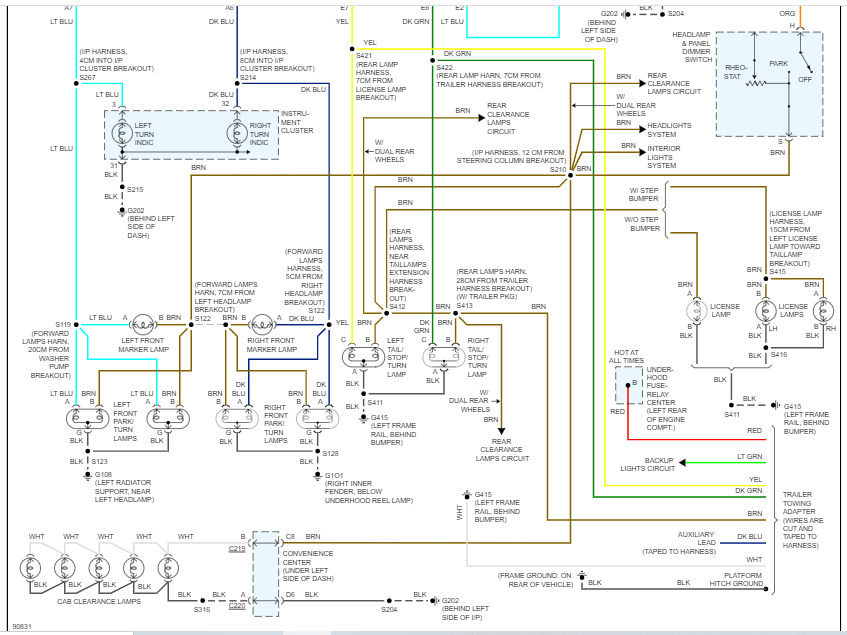

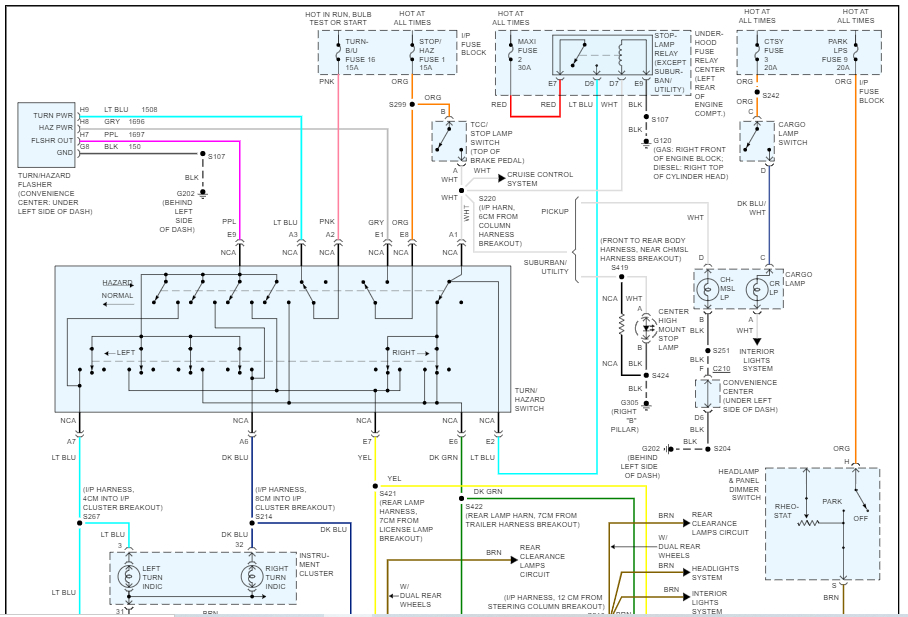

See pic below.
Images (Click to make bigger)
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
+2
Saturday, April 1st, 2023 AT 3:49 PM
Tiny
KARLA ZEN ART
  • MEMBER
  • 3 POSTS
Thank you much! See how it goes from there.
Was this
answer
helpful?
Yes
No
Sunday, April 2nd, 2023 AT 4:16 PM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,874 POSTS
Hi,

You are very welcome and it's no problem whatsoever.

If you can, let me know how things turn out. If I can help in any way, let me know.

Take care,

Joe
Was this
answer
helpful?
Yes
No
Sunday, April 2nd, 2023 AT 6:57 PM
Tiny
KARLA ZEN ART
  • MEMBER
  • 3 POSTS

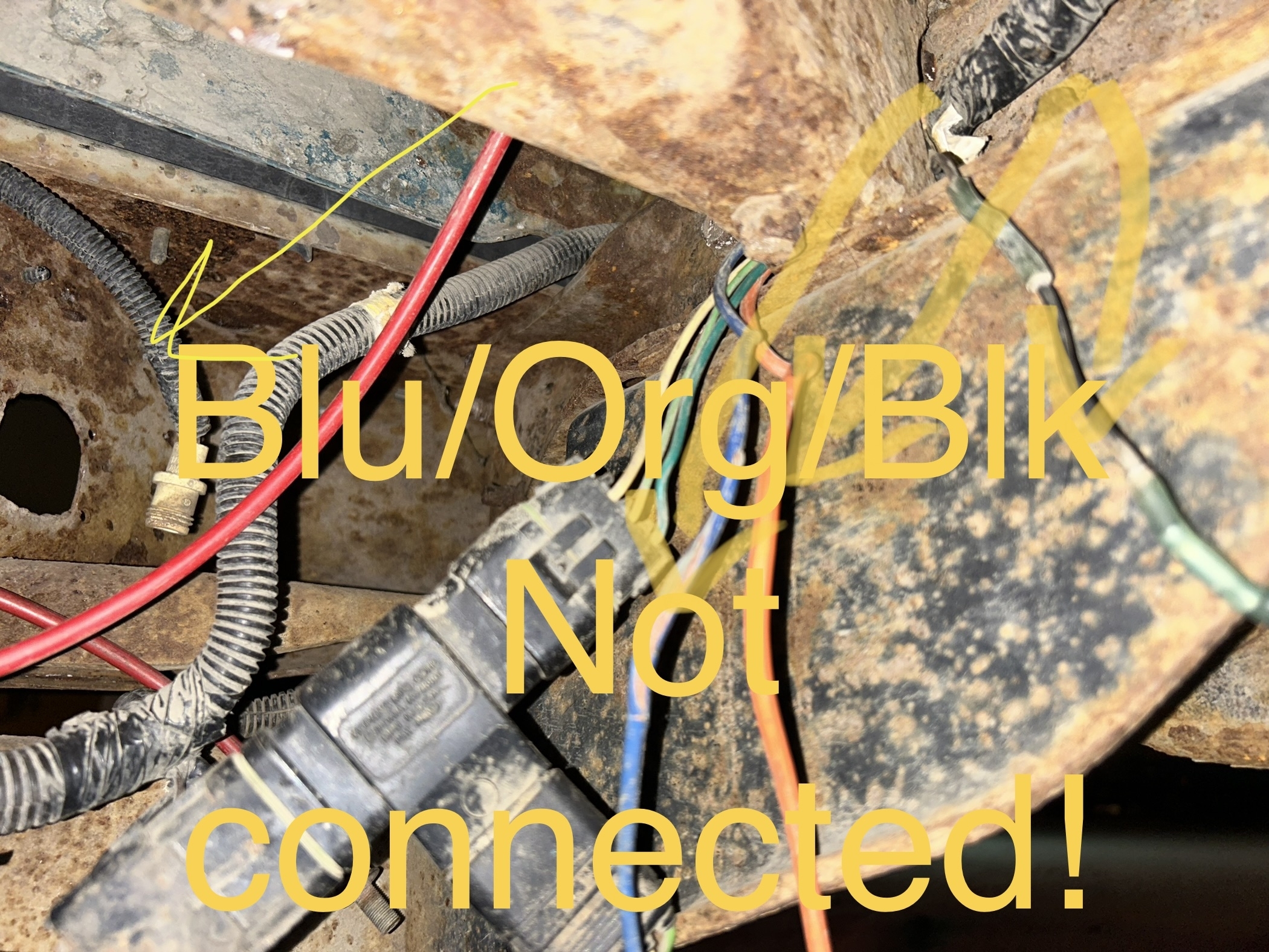

Hi, so I got all the ground wires connected on the box, but after I started the truck, it shorted out under my dash, and I have some ground points that have come loose and blowing fuses. I'm not sure where they go.
That is possibly my issue?
Was this
answer
helpful?
Yes
No
Monday, April 3rd, 2023 AT 2:33 AM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,874 POSTS
Hi,

What shorted under the dash? Also, are you certain that the wires you refer to are all grounds? Could you take a few pics and upload them for me to see?

Let me know.

Joe
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Monday, April 3rd, 2023 AT 7:38 PM

Please login or register to post a reply.
