How does this diagnostic tool work

AUSTINO

MEMBER
2003 JAGUAR S-TYPE
3.0L
6 CYL
2WD
AUTOMATIC
67,000 MILES

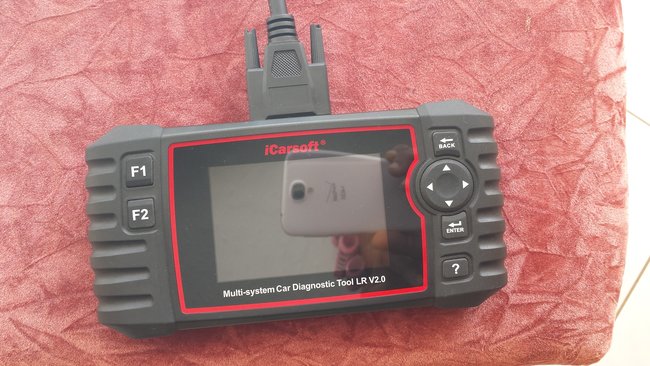

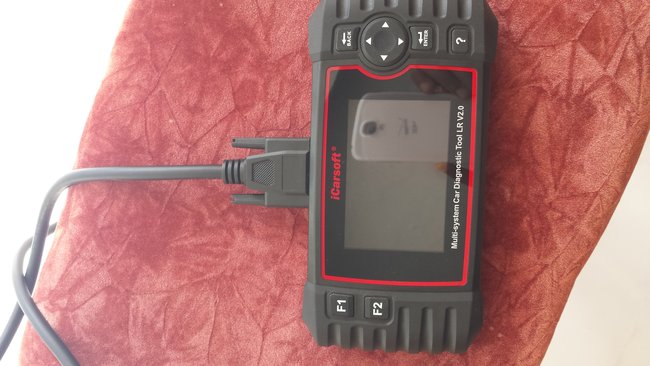

Good afternoon, I bought this diagnosis tool for my car but I have little knowledge as to how it operates. Can you kindly give a guide as to how it works. Thank you for a speedy response. Please see images of the type of tool below. Thank you.

Images (Click to make bigger)

Sunday, June 16th, 2019 AT 2:17 PM

9 Replies

SCGRANTURISMO

MECHANIC
4,897 POSTS

Hello,

This looks like an OBD2 scan tool. Is there any way you can upload a picture of the connector end for us?

Thanks,
Alex
2CarPros

SPONSORED LINKS

Was this

answer

helpful?

Yes

Sunday, June 16th, 2019 AT 3:05 PM

AUSTINO

MEMBER
209 POSTS

Yes I can. Thanks in a moment please.

Was this

answer

helpful?

Yes

Sunday, June 16th, 2019 AT 3:14 PM

SCGRANTURISMO

MECHANIC
4,897 POSTS

Hello again,

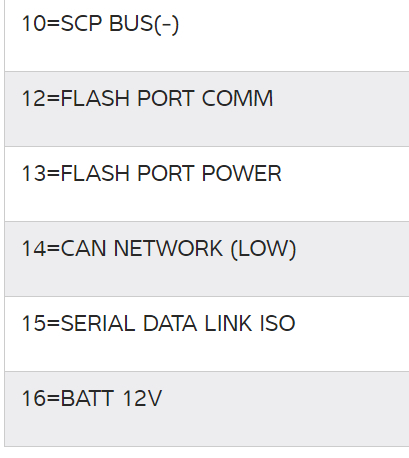

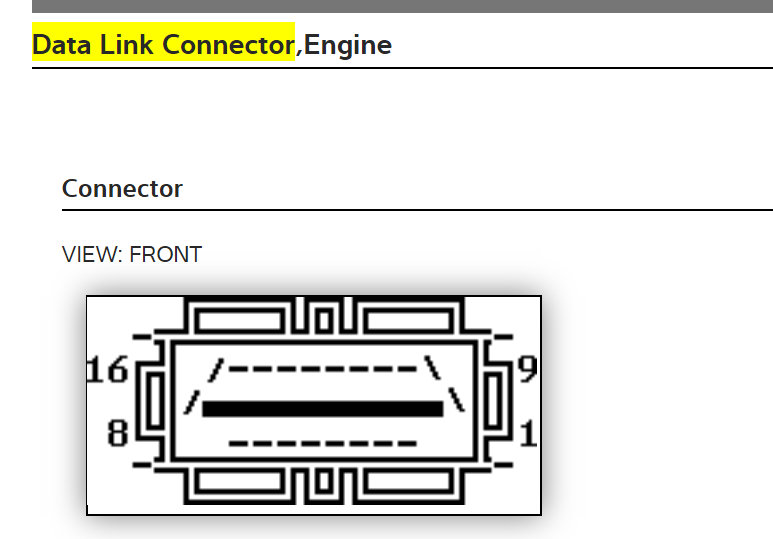

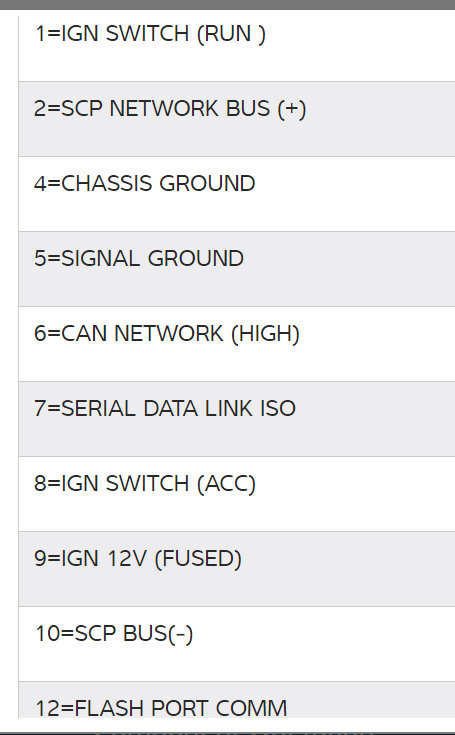

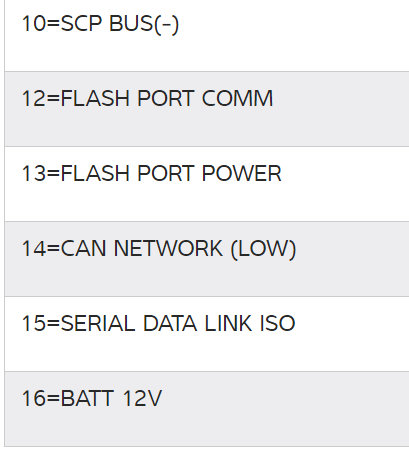

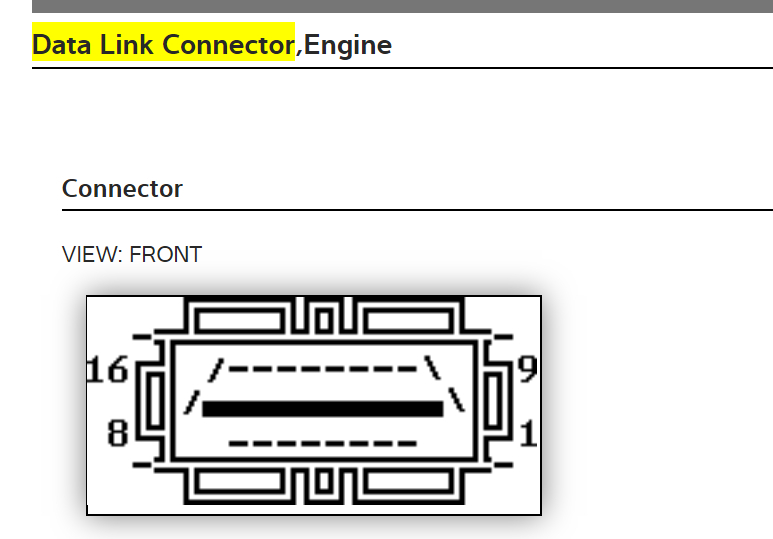

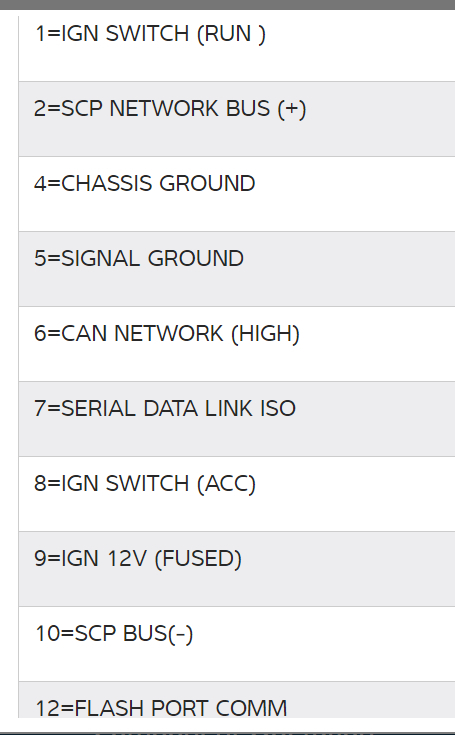

If it is a scan tool, the connector should plug into your vehicle's Data Link Connector(DLC). It will be OBD2 compliant and be able to read OBD2 Direct Trouble Codes(DTC)(s). Some can access the vehicle Parameter IDs(PID)(s), view freeze frame data, and erase DTC(s). The connector for the DLC is a 16 pin connector, and should, by law, be easily accessable to you setting in the drivers seat, usually under the dash. I have included a DLC diagram and callout in the diagrams down below.

Thanks,
Alex
2CarPros

Images (Click to make bigger)

Was this

answer

helpful?

Yes

Sunday, June 16th, 2019 AT 4:28 PM

AUSTINO

MEMBER
209 POSTS
2003 JAGUAR S-TYPE
3.0L
2WD
AUTOMATIC
67,000 MILES

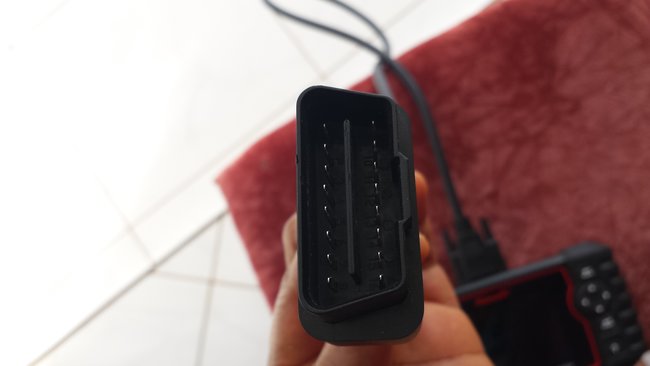

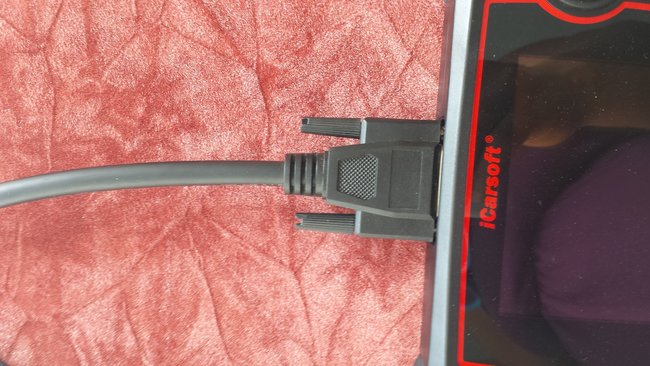

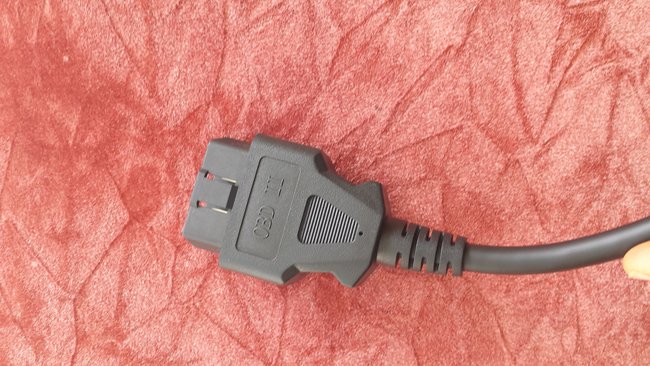

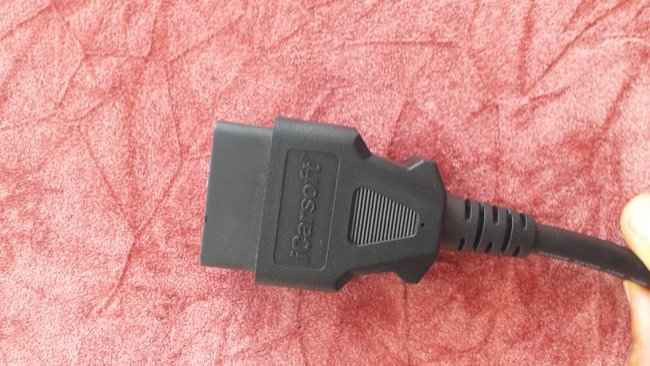

Good evening, here are the images showing the connector for the Scanning tool.I don't know if this will. Thank you.

Images (Click to make bigger)

Was this

answer

helpful?

Yes

Monday, June 17th, 2019 AT 4:54 PM (Merged)

DANNY L

MECHANIC
5,648 POSTS

Hello, I'm Danny.

That is a scan tool for checking OBD 2 diagnostic codes for your vehicle. Do you have a question? Hope this helps and thanks for using 2CarPros.
Danny-
