Transfer case noise? Whenever shifting from P to D or to N or to R?

Tiny
ZAIN7
  • MEMBER
  • 2014 JEEP GRAND CHEROKEE
  • 3.6L
  • 6 CYL
  • 760,000 MILES
Hi Kasekenny,

I am driving the vehicle listed above. I am facing Cherokee Transfer case noise whenever shifting from P to D or to N or to R, it keeps clicking for some 5 secs and stops then clicks while stopping at junctions. The car has 1/4 new tires and 3 same tires. I can also feel some stiffness on the tires at strong turns. Will changing all 4 tires help to overcome this issue? I am in UAE and no mechanics have been able to translate a solution to this they say keep driving. GC Laredo Transfer Case.
Sunday, February 5th, 2023 AT 8:48 PM

12 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,604 POSTS

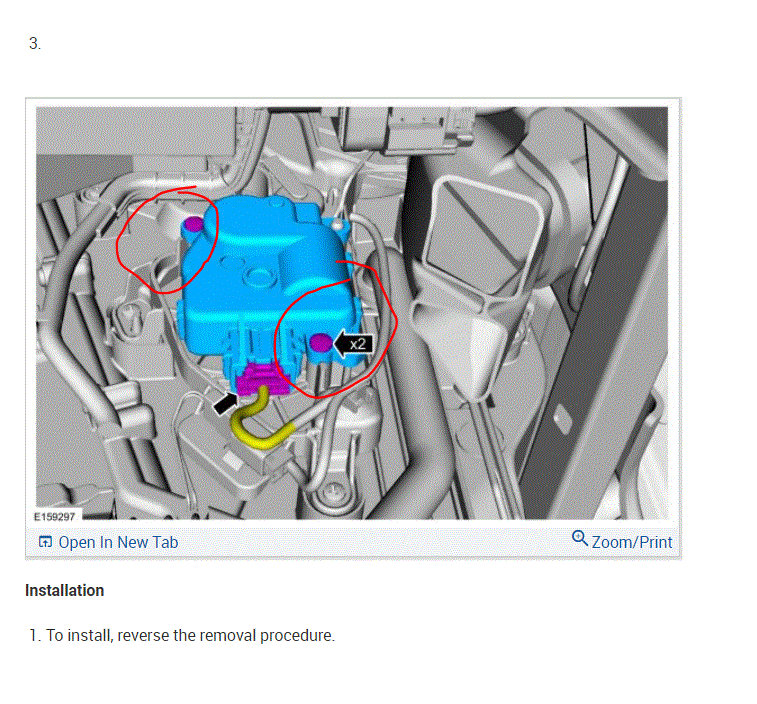

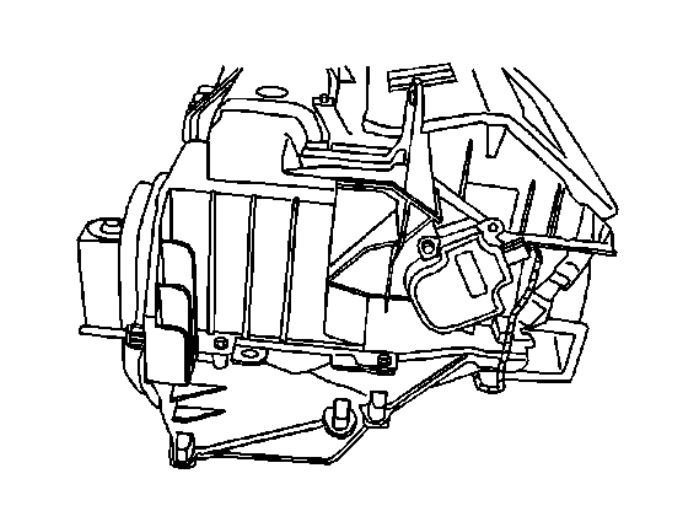

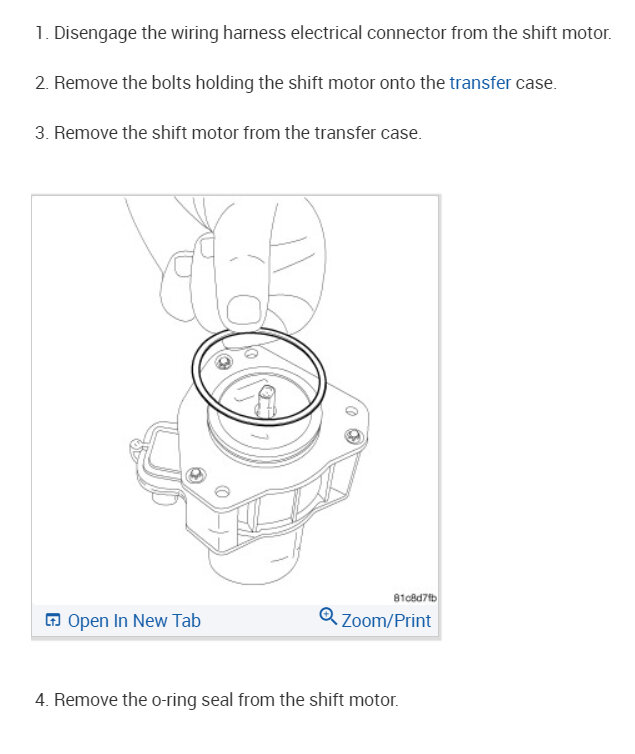

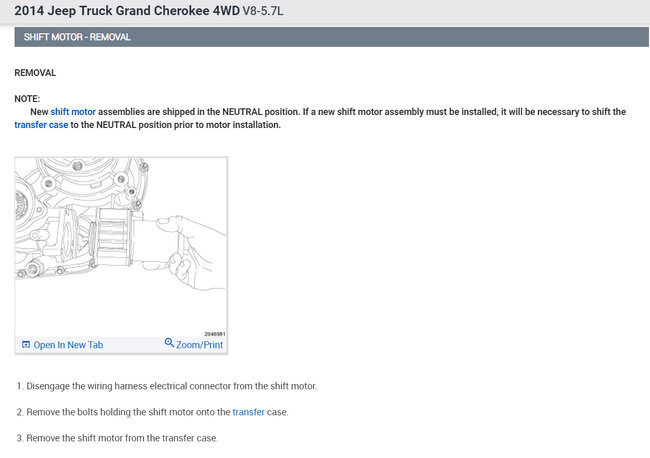

The tire size should not make a difference, it sounds like you have a transfer case actuator motor that is weak, if you upload a short video of the noise, I can tell for sure what's going on. Here is the location of the unit so you can change it out. Check out the images (below). Please let us know what happens.
Was this
answer
helpful?
Yes
No
Monday, February 6th, 2023 AT 12:32 PM
Tiny
ZAIN7
  • MEMBER
  • 8 POSTS
Hi Kenny,

Many thanks for attending my request, attached is the video, i have tried changing gears from P to D and P to R for making the video efficient.
While you mentioned transfer case motor, I even saw a YouTube video saying it's the TCM module sharing link below. Please help as i have already spent $2,000.00 to fix this with no results.

https://youtu.be/Uvedd8JAN0Q
Was this
answer
helpful?
Yes
No
Monday, February 6th, 2023 AT 1:11 PM
Tiny
ZAIN7
  • MEMBER
  • 8 POSTS
One more video, car was in ignition after 24 hours thus the engine warming noise.
Was this
answer
helpful?
Yes
No
Monday, February 6th, 2023 AT 1:15 PM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,604 POSTS

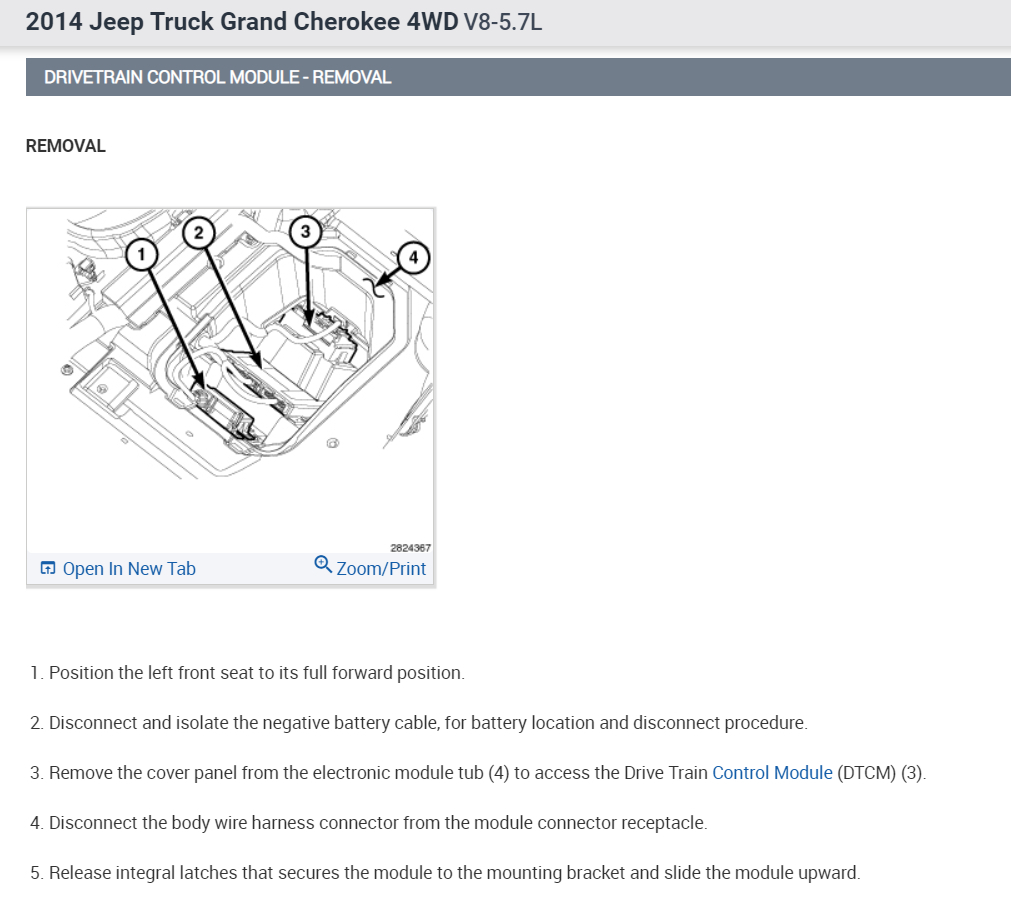

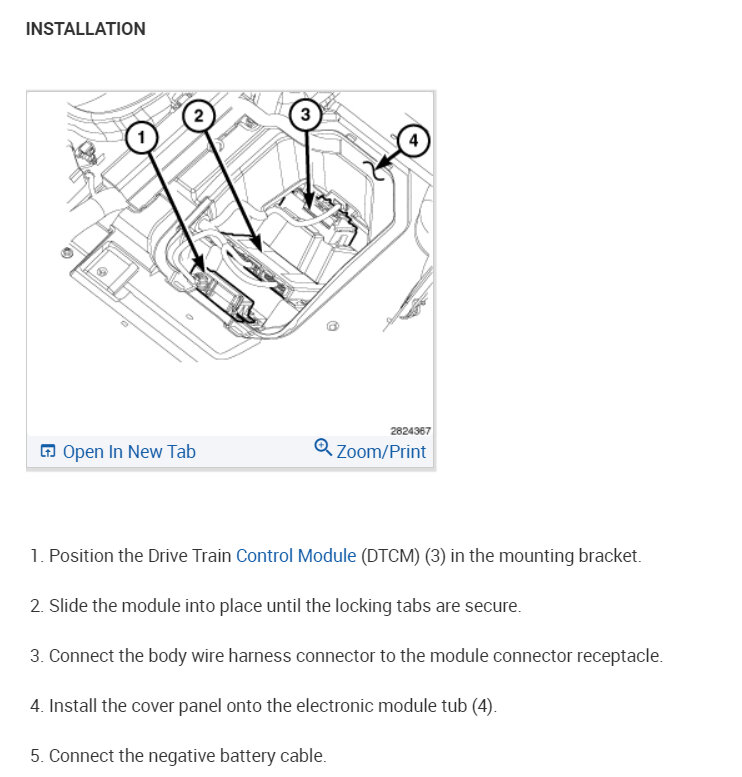

Thanks for the videos, they helped. The fact that the noise occurs when not driving rules out and internal problem. Good job on the video find the control module must be mixed up causing the actuator to oscillate. Here is the location of the module in your car so you can swap it out. It look like it is a plug and play part so that is nice. They do have a relearn procedure but if you just drive it you should be okay. Here it is below and please check the images below.

TRANSFER CASE VERIFICATION TEST

1. Disconnect all jumper wires and reconnect all previously disconnected components and connectors.
2. Make sure that all accessories are turned off.
3. Make sure that the battery is fully charged.
4. With the scan tool, record and erase all DTC(s) from the Drive Train Control Module (DTCM) and the Cluster/CCN.
5. Test drive the vehicle. If equipped with a selector switch drive the vehicle in each Transfer Case range and verify proper operation in each range.
- To select or deselect 2WD, AWD or 4HI mode, vehicle speed must be below 88 Kmh (55 mph) with all wheels at vehicle speed.
- Shifts will not take place with a wheel speed difference of greater than 21 Kmh (13 mph) between the front and rear wheels.
- To select or deselect 4LO (if equipped), vehicle speed must be below 5 Kmh (3 mph) with the ignition on, engine not running and the transmission in neutral (automatic transmission) or the clutch pedal pressed (manual transmission).
- To select or deselect Transfer Case Neutral (if equipped), vehicle speed must be 0 Kmh (0 mph) with the ignition on, engine not running, the brake pedal applied, and the transmission in neutral (automatic transmission) or the clutch pedal pressed (manual transmission). Press the Neutral button (if equipped) on the Transfer Case Selector Switch until the Neutral Indicator is illuminated.
- WARNING:
Apply the parking brake. The vehicle may roll with the Transfer Case in neutral.

- To verify that the Transfer Case is in Neutral, shift the automatic transmission into reverse and release the brake pedal for three seconds or shift the manual transmission into gear and slowly release the clutch pedal. There should be no vehicle movement if the Transfer Case is in Neutral.

6. With the scan tool, read DTCs in the Drive Train Control Module (DTCM) and in the Cluster Control Node (CCN).

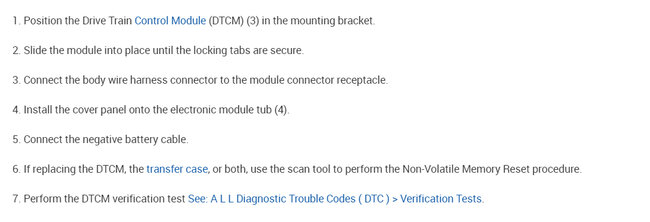

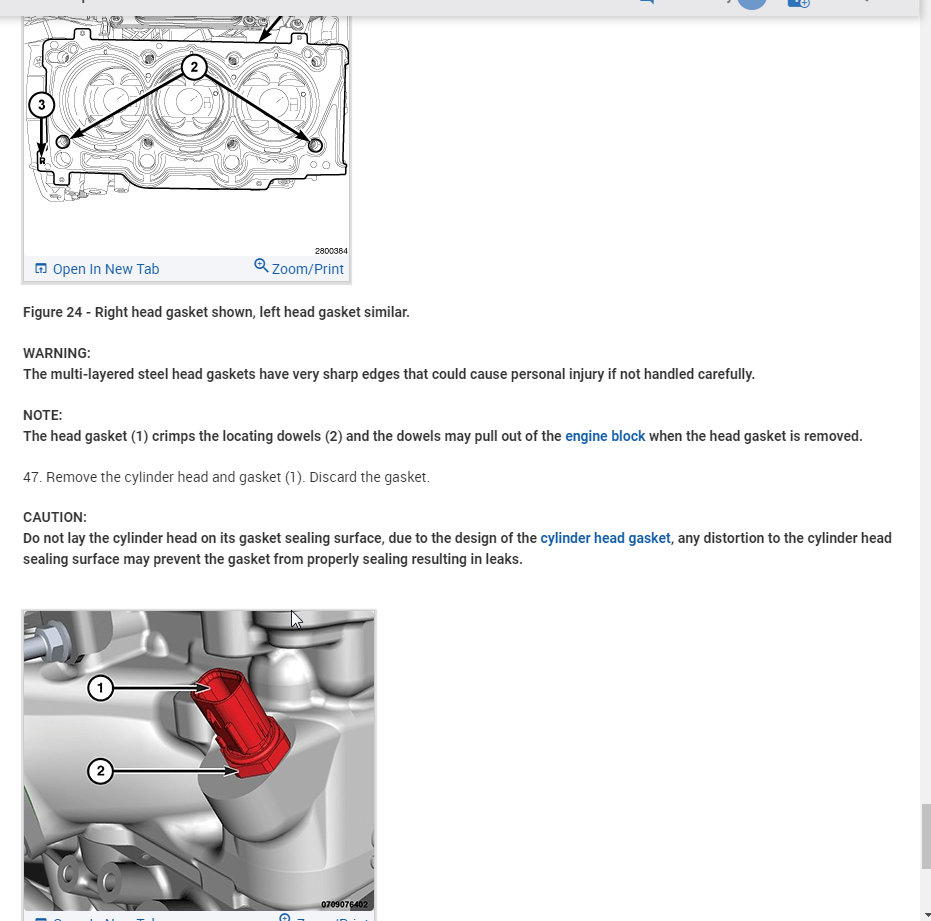

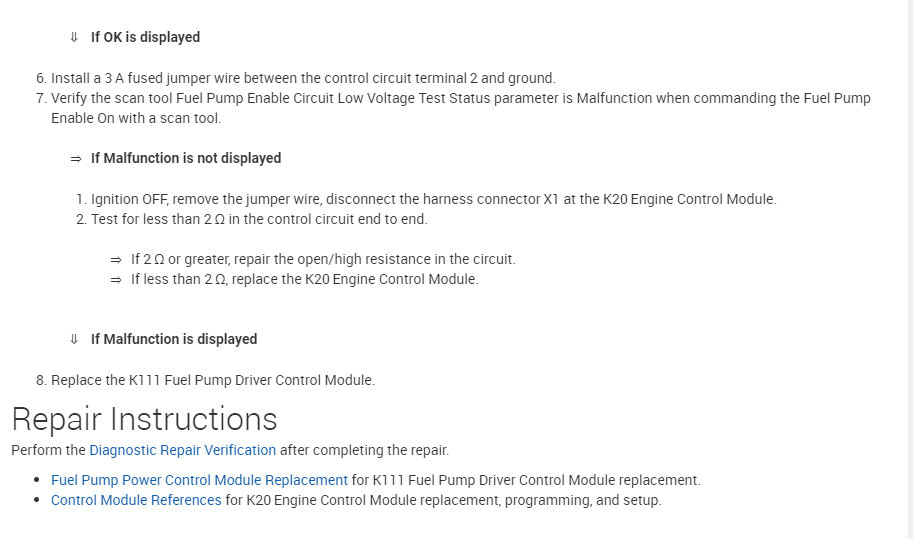

Check out the images (below). Please let us know what happens.
Was this
answer
helpful?
Yes
No
Tuesday, February 7th, 2023 AT 11:56 AM
Tiny
ZAIN7
  • MEMBER
  • 8 POSTS
Hey Ken,

I have ordered the TCM, it should come in a week. Just for knowledge initially you had mention it's the transfer case motor, is that still the case? This noise in the video comes while shifting gears & while stopping at stops also some resistance while steep parking turns. I am confused, please help.
Was this
answer
helpful?
Yes
No
Wednesday, February 8th, 2023 AT 12:48 PM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,604 POSTS
The transfer case motor is the item that is making the noise but that is because of the TCM shorting out internally. The new TCM should fix it. Let me know.
Was this
answer
helpful?
Yes
No
Friday, February 10th, 2023 AT 1:18 PM
Tiny
ZAIN7
  • MEMBER
  • 8 POSTS
Hey Ken,

I have now changed the DTCM chip at the agency itself with details scanning and successfully able to get rid of the long clicking noise while shifting gears. However, I still hear single clicks while stopping at red lights or speed bumps and even when putting in reverse there are 2 clicks. Still feel while driving some resistance in wheels.
Wanted to know if it's the tires now like I had shared before 1/4 is a 2021 tire and rest 3 are 2020 changed at 2 different intervals. Looking forward for ur response.
Or is the transfer case going bad?
Was this
answer
helpful?
Yes
No
Sunday, February 19th, 2023 AT 2:08 PM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,604 POSTS
Are the tires the same size? If so, you should be okay. Can you tell if the noise is coming from the same area? If so, I would try to service the transfer case and install fresh gear oil.

Fluid Types

TRANSFER CASE FLUID

MP2010 .................... Use ATF approved to MB 236.10, MB 236.12.

MP3010 .................... Mopar ATF+4 Automatic Transmission Fluid

MP3023 .................... Mopar ATF+4 Automatic Transmission Fluid

Capacities

TRANSFER CASE FLUID CAPACITY

MP2010 .................... 0.51 Liters (1.1 Pints)

MP3010 .................... 1.35 Liters (1.4 Quarts)

MP3023 .................... 1.9 Liters (2.0 Quarts)

Caution: Nominal refill capacities are shown. A variation may be observed from vehicle to vehicle due to manufacturing tolerance and refill procedure.

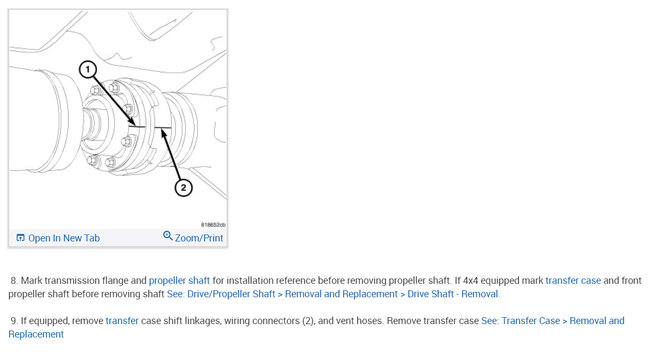

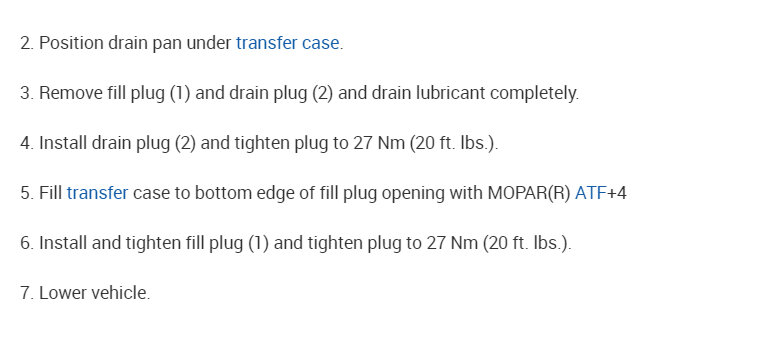

Here is the job being done on a similar car, but the procedure is the same:

https://youtu.be/jywt228y8UM

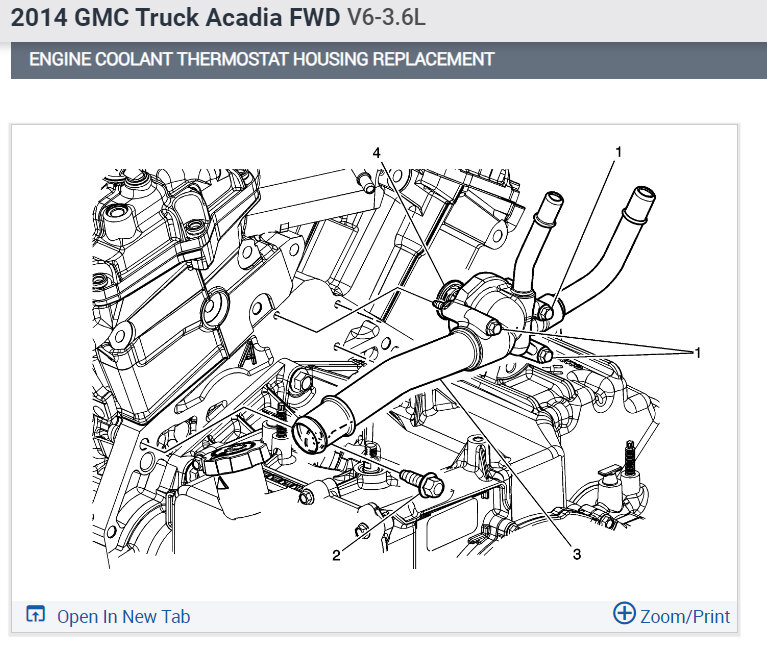

Please check the images below for more instructions and let me know how it goes
Was this
answer
helpful?
Yes
No
Monday, February 20th, 2023 AT 12:46 PM
Tiny
ZAIN7
  • MEMBER
  • 8 POSTS
Hey Ken,

Thanks for your response, yes it's from the same area. Today I even felt a 4wd change small jerk while driving, please find below the video.
Let me know if I should proceed with the change of oil as you mentioned below or is it something else.
Compared to the drive I had the very first day of changing DTCM to today it feels a little rough and resisting (like older times 50%).

For the tires, I have recently changed my upper and lower arm bushes since they were 70% worn out & at that time I had visited a tire place where they said because of the bad bushes the tires have uneven wear on all 4 tires.
Was this
answer
helpful?
Yes
No
Monday, February 20th, 2023 AT 1:52 PM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,604 POSTS
Thanks for the videos, most of the noise seems to be gone, I would service the transfer case which should take care of the remainder of the problems. The transfer case is a normal service item so you have nothing to lose. Also do you have any warning lights on?
Was this
answer
helpful?
Yes
No
Tuesday, February 21st, 2023 AT 8:19 AM
Tiny
ZAIN7
  • MEMBER
  • 8 POSTS
Hey Ken,
No warning lights, no warning messages so far.
It wasn't there before as well.
Was this
answer
helpful?
Yes
No
Tuesday, February 21st, 2023 AT 10:17 AM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,604 POSTS
Okay, let me know once you have serviced the transfer case.
Was this
answer
helpful?
Yes
No
Thursday, February 23rd, 2023 AT 10:55 AM
